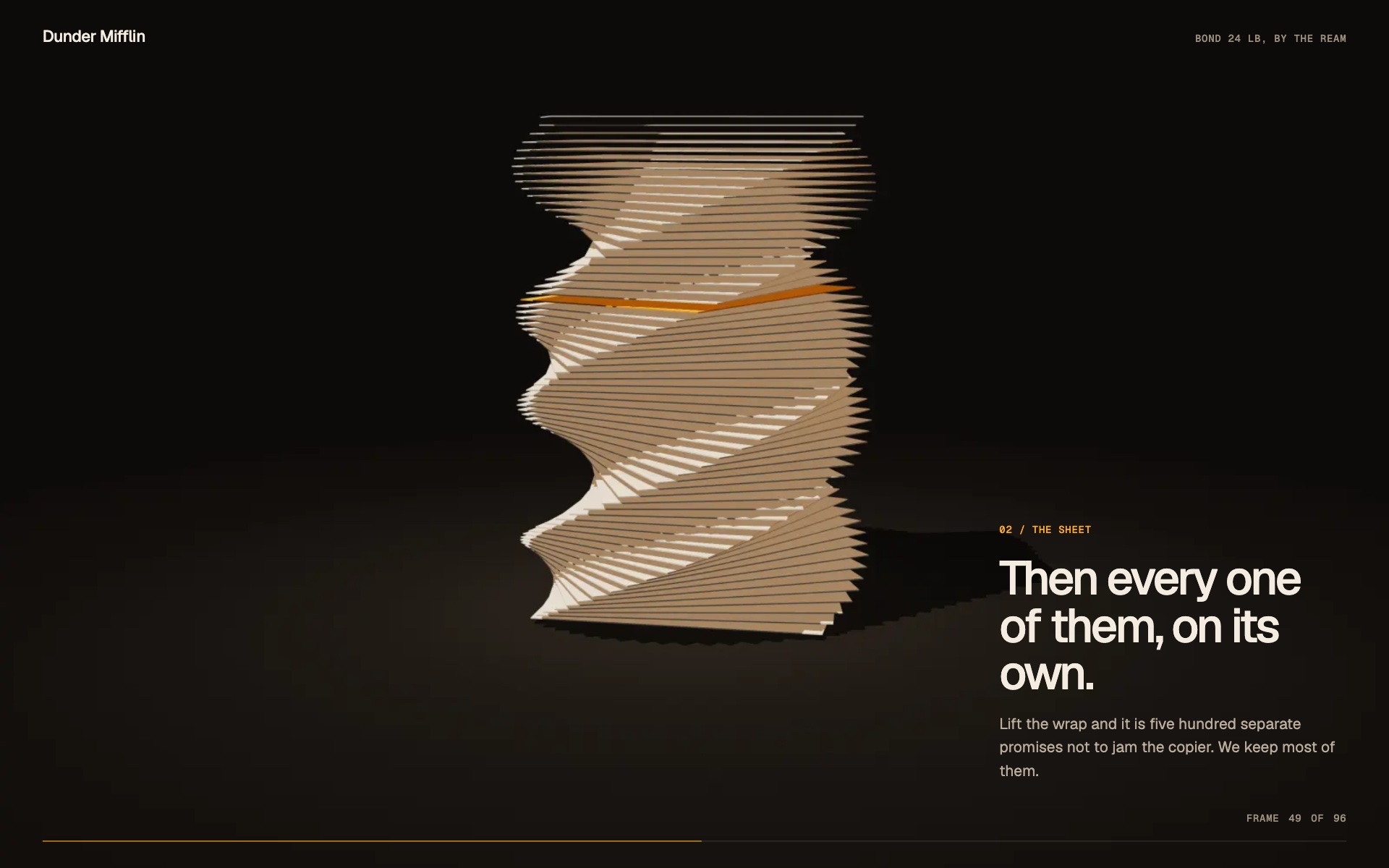

Scroll image sequence

1. Copy to Webflow

   Add Geist and Geist Mono to your site's fonts (Site settings, Fonts, Google Fonts) before pasting: Webflow removes any font your site has not installed.
   Copy to Webflow

2. Add custom CSS

   To keep things simple, the code ships inside the Webflow embed. You can also copy it here and add it yourself to the page or site custom code. How to choose

   Three things belong to the page rather than to the component: the section takes no height of its own, its height being one screen plus the scroll the sequence takes; no parent of the section may cut its overflow with overflow: hidden, which stops the block from pinning, so use overflow-x: clip where a parent has to cut; and the frames need an address that keeps their file names when they are given as a pattern, which the Assets panel of Webflow does not.

3. Add custom JS

   To keep things simple, the code ships inside the Webflow embed. You can also copy it here and add it yourself to the page or site custom code. How to choose

4. Tune it

   Custom attributes
   Select the section on the canvas and open the Settings panel. Under Custom attributes, add a pair: the name on the left, the value on the right.

   Custom attribute	What it does
   data-scroll-sequence	Marks the section the page scrolls through while the picture plays. It takes no value: leave the value field empty. That section is what the stylesheet makes taller by the scroll the sequence takes, and what carries the settings. Without it on any element of the page, the embed marks the block holding the screen.
   data-scroll-sequence-pin	Marks the block that stays on screen, a child of the section: the canvas goes behind what it holds. It takes no value. Without it the engine takes the first block of the section. [ Optional ]
   data-scroll-sequence-frames	Marks the box whose pictures are the frames, in the order of the page: swap them, add some, take some out. It takes no value and is never shown. Not needed when the section gives an address and a count with data-scroll-sequence-src and data-scroll-sequence-count; without either, there is no frame and the console says so. [ Optional ]
   data-scroll-sequence-beat="0.36 0.62"	Marks a text that comes and goes: the share of the sequence where it comes, then the share where it leaves, 0 the first frame and 1 the last. A second number of 1 keeps it to the end. [ Optional ]
   data-scroll-sequence-loader	Marks what shows while the frames come in: it is hidden once they are all in. It takes no value. [ Optional ]
   data-scroll-sequence-bar	Marks a rule the load fills: it is scaled across by the share of frames that have arrived. It takes no value. [ Optional ]
   data-scroll-sequence-loaded	Marks a text that receives the share of frames that have arrived, 37% for instance. It takes no value. [ Optional ]
   data-scroll-sequence-frame	Marks a text that receives the number of the frame on screen. It takes no value. [ Optional ]
   data-scroll-sequence-total	Marks a text that receives how many frames the sequence has. It takes no value. [ Optional ]
   data-scroll-sequence-track	Marks a rule the scroll fills: it is scaled across by the place in the sequence. It takes no value. [ Optional ]
   data-scroll-sequence-alt="A ream of paper opening"	On the section: the name assistive technology reads for the picture. Without it the canvas takes the alt of the first picture of the frames box, and is skipped as a decoration when there is none. [ Optional ]
   data-scroll-sequence-state	Written by the engine on the section: idle until the section is near the window, loading while the frames come in, ready once they are all in, still under reduced motion. Never written by hand; it is what the stylesheet reads to pin the block and to hide the loader. [ Optional ]
   data-scroll-sequence-beat-state	Written by the engine on each beat: before, on or after. Never written by hand; the stylesheet reads it to bring the beat in and out. [ Optional ]

   Settings
   Every setting is a custom attribute too, added the same way and on the same section. An attribute always wins over the defaults written in the code.

   Attribute	Default	What it is
   data-scroll-sequence-background	#0e0b09	Colour of the block behind the frames: what shows before the first frame arrives, and around the picture when fit is contain. Options: any CSS colour. Give it the colour the frames have at their edges and the picture has no seam.
   data-scroll-sequence-src	empty	Address of the first frame, with its number in braces: https://your.host/shot-{001}.webp. The number in the braces is where the count starts and how many digits it is written with. Options: left empty, the frames are the pictures of the box marked data-scroll-sequence-frames, in the order of the page. {001} counts 001, 002, 003; {0} counts 0, 1, 2; {0100} starts at 0100.
   data-scroll-sequence-count	0	How many frames the address names. Only read with src.
   data-scroll-sequence-length	clamp(1600px, 420vh, 5200px)	Scroll the sequence takes, any CSS length: how long the block holds the screen.
   data-scroll-sequence-smooth	0.16	Time the picture takes to catch the scroll, in seconds.
   data-scroll-sequence-fit	cover	How a frame fills the screen: cover or contain. Options: cover fills the block and crops what does not fit, contain shows the whole frame and leaves background around it.
   data-scroll-sequence-focus-x	0.5	Point of the frame kept in view across, 0 its left edge and 1 its right, when cover crops the sides.
   data-scroll-sequence-focus-y	0.5	Point of the frame kept in view down, 0 its top and 1 its foot, when cover crops the top and the foot.
   data-scroll-sequence-blend	on	Cross-fade between two neighbouring frames while the picture moves: on or off. Options: on draws the two frames around the place in the scroll, one over the other, so few frames still make one move; off shows one frame at a time, for a sequence with hard cuts or fine line work that ghosts.
   data-scroll-sequence-density	2	Most canvas pixels per CSS pixel. The bitmap follows the screen up to this.
   data-scroll-sequence-poster	0	Frame shown under reduced motion, as a share of the sequence, 0 the first and 1 the last.

Two files and their pictures (96), no build step. It runs in the browser only. Load it with a script tag in plain HTML, in a client-side script in Astro, never in the frontmatter. In React, call ScrollSequence.mount(ref.current) in useEffect and destroy() in its cleanup.

1. Tune it, either way

   Per element with an attribute, or once for the whole site by editing DEFAULTS at the top of the file.

   Attribute	Default	What it is	Lower	Higher
   data-scroll-sequence-background	#0e0b09	Colour of the block behind the frames: what shows before the first frame arrives, and around the picture when fit is contain. Options: any CSS colour. Give it the colour the frames have at their edges and the picture has no seam.
   data-scroll-sequence-src	empty	Address of the first frame, with its number in braces: https://your.host/shot-{001}.webp. The number in the braces is where the count starts and how many digits it is written with. Options: left empty, the frames are the pictures of the box marked data-scroll-sequence-frames, in the order of the page. {001} counts 001, 002, 003; {0} counts 0, 1, 2; {0100} starts at 0100.
   data-scroll-sequence-count	0	How many frames the address names. Only read with src.	A short sequence, light to load; under 40 frames the cross-fade starts to show as a ghost on a fast move	A finer move and more to download: weigh the whole set, 100 to 150 frames is the usual range
   data-scroll-sequence-length	clamp(1600px, 420vh, 5200px)	Scroll the sequence takes, any CSS length: how long the block holds the screen.	A quick flick through the frames	A slow, detailed move, and more wheel to turn before the page goes on. Around 30 to 50 pixels of scroll per frame reads well
   data-scroll-sequence-smooth	0.16	Time the picture takes to catch the scroll, in seconds.	At 0 the picture is locked to the scroll, right with a smooth scroll library already on the page	A picture that glides after a wheel notch, and lags behind a fast scroll
   data-scroll-sequence-fit	cover	How a frame fills the screen: cover or contain. Options: cover fills the block and crops what does not fit, contain shows the whole frame and leaves background around it.
   data-scroll-sequence-focus-x	0.5	Point of the frame kept in view across, 0 its left edge and 1 its right, when cover crops the sides.	The left of the frame stays, the right is cropped	The right of the frame stays. 0.5 keeps the middle, which is what a phone needs for a centred subject
   data-scroll-sequence-focus-y	0.5	Point of the frame kept in view down, 0 its top and 1 its foot, when cover crops the top and the foot.	The top of the frame stays, the foot is cropped	The foot of the frame stays
   data-scroll-sequence-blend	on	Cross-fade between two neighbouring frames while the picture moves: on or off. Options: on draws the two frames around the place in the scroll, one over the other, so few frames still make one move; off shows one frame at a time, for a sequence with hard cuts or fine line work that ghosts.
   data-scroll-sequence-density	2	Most canvas pixels per CSS pixel. The bitmap follows the screen up to this.	A lighter canvas, softer on a dense screen: 1 is enough for frames that are not larger than the block	A sharper picture when the frames have the pixels for it, and more to paint on every frame: past 2 the cost shows before the gain
   data-scroll-sequence-poster	0	Frame shown under reduced motion, as a share of the sequence, 0 the first and 1 the last.	Towards the first frame	Towards the last frame. It is the only frame downloaded then

2. Drive it from JavaScript

   When the frames, the beats or an attribute change after load, or when the page reacts to the load and to the beats.
   JavaScript Expand Copy

   const element = document.querySelector('[data-scroll-sequence]');
   element.addEventListener('scrollsequence:change', (e) => {
     console.log(e.detail);
   });

   const sequence = ScrollSequence.mount(element);   // the section auto() mounted, or a new one
   sequence.progress();   // 0 to 1, the place in the sequence
   sequence.loaded();     // 0 to 1, the share of frames that have arrived
   sequence.refresh();    // after changing an attribute, the frames or the beats

   element.addEventListener('scrollsequence:load', (e) => {
     console.log(e.detail.loaded, 'of', e.detail.total);
   });

   // When the section leaves the page:
   ScrollSequence.destroy(element);   // removes the canvas and gives back the markup as it was

   Show all 16 lines

3. Fit it to your page

   • Structure: one section marked data-scroll-sequence, holding one block marked data-scroll-sequence-pin: the block that stays on screen. Whatever the block holds, a strip, the texts, a foot, stays with it, over the picture. Without the mark the engine takes the first block of the section.
   • The frames, the short way: give the section the address of the first frame with its number in braces, and how many there are, data-scroll-sequence-src="https://your.host/shot-{001}.webp" and data-scroll-sequence-count="120". The files have to keep their names where they are hosted: a bucket, a CDN, the public folder of a site.
   • The frames, from the page: with no src, the frames are the pictures of the box marked data-scroll-sequence-frames, in the order of the page. This is what the preview does, and the way to keep the frames in the assets of a Webflow site, which renames every file it stores and so breaks a pattern. The box is never shown; its pictures can stay loading="lazy", the engine asks for the files itself.
   • A beat: any block inside the section with data-scroll-sequence-beat="0.36 0.62", the share of the sequence where it comes and the share where it leaves. The engine writes data-scroll-sequence-beat-state on it, before, on or after, and the stylesheet does the move: change the rule to change how a beat arrives. A beat whose second number is 1 stays to the end.
   • The loader and the readouts are optional, and found by attribute anywhere in the section: data-scroll-sequence-loader is hidden once the frames are all in; data-scroll-sequence-bar is scaled across by the share of frames loaded; data-scroll-sequence-loaded receives that share as text, 37%; data-scroll-sequence-frame and data-scroll-sequence-total receive the frame on screen and how many there are; data-scroll-sequence-track is scaled across by the place in the scroll. The two shares are also custom properties of the section, --scroll-sequence-loaded and --scroll-sequence-progress, 0 to 1, for any rule of your own.
   • Making the frames: export a video or a 3D turn as numbered stills, all the same size. WebP at a quality around 75 is the best trade today; the preview's 96 frames of 1600 by 1200 weigh 2.3 MB in all. Keep the subject near the middle, since a phone held upright shows about a third of the width of a 4:3 frame, and give the edges of the frame one flat colour, the one background takes.
   • One setting for every section of the page, without opening the file: declare window.ScrollSequenceSettings = { smooth: 0 } in a script placed before scroll-sequence.js. The three levels, least specific first, are DEFAULTS, then that object, then a data-scroll-sequence-* attribute on the section itself (data-scroll-sequence-focus-y="0.3"), so one section can still differ from the page-wide setting.
   • What the script writes: data-scroll-sequence-state on the section, idle until the section is near the window, loading while the frames come in, ready once they are all in, still under reduced motion. One canvas, added as the first child of the block, or the page's own <canvas data-scroll-sequence-canvas> when the block has one. The state of each beat, the texts of the readouts, and the two custom properties.
   • The name of the picture: the canvas takes the alt of the first picture of the frames box, or data-scroll-sequence-alt on the section, as its accessible name. With neither it is hidden from assistive technology, as a decoration.
   • From JavaScript: ScrollSequence.mount(element, overrides) returns the instance, with element, settings, state(), progress() from 0 to 1, loaded() from 0 to 1, frame() and total(), refresh() after an attribute, the beats or the frames changed, and destroy(). The section emits scrollsequence:change with { element, state }, scrollsequence:load with { element, loaded, failed, total } for each frame that arrives, and scrollsequence:beat with { element, beat, index, state }; the three bubble.
   • **destroy() leaves the section as it was**: the canvas removed when the engine added it, the pending downloads dropped, the listeners and the observers gone, the states and the custom properties taken off.
   • Touch: the sequence follows the page scroll, so a finger drives it as a wheel does. Nothing listens to touch events.
   • **prefers-reduced-motion**: no pin and no sequence. The block is a plain block showing the poster frame, the only one downloaded and held back to 45% so the text over it stays readable, with every beat on the page, one under the other. Turning the preference off brings the sequence back without a reload.
   • Without the script, the block shows the first picture of the frames box as a cover, held back the same way, and every text.
   • Smooth scroll libraries: nothing to wire. The engine listens to scroll events and reads the section's place from the layout, which is what Lenis and the like move. Set smooth to 0 if the two glides add up.
   • The words and the pictures of the markup are the preview's, and they ship as they are. Put the user's own in their place whenever they want.
   • On Webflow, add the fonts first. Add Geist and Geist Mono to your site's fonts (Site settings, Fonts, Google Fonts) before pasting: the paste names them, and the Designer drops a font the site does not have.

4. Avoid the pitfalls

   • Webflow renames every asset, so a pattern cannot point at them. A file uploaded to the Assets panel gets a random prefix, different for each one. In Webflow, either keep the frames as Images in the frames box and swap them there, or host the files somewhere that keeps their names and give src and count.
   • An ancestor that cuts its overflow kills the pin, silently. overflow: hidden on a parent makes it the scroll container of the sticky block, and a container that does not scroll has nowhere to pin. Use overflow-x: clip where a parent has to cut. The engine says so in the console when it finds one.
   • Give the section no height of its own. Its height is one screen plus length, the second added by the stylesheet as the ::after of the section: a fixed height cuts the hold short or leaves a blank, and a section that already uses its ::after loses it while the sequence is on.
   • Every frame the same size. The crop is worked out for each frame from its own size, so a frame of another shape jumps.
   • The whole set is downloaded. Nothing is streamed: 150 frames of 80 KB are 12 MB. Weigh the folder, and bring the size, the quality or the count down before raising length. The load starts only when the section is within a screen and a half of the window.
   • A missing frame is skipped, not fatal. The nearest loaded frame stands in, the console names the first address that failed, and the readout ends short of 100%, since it only counts what arrived. It is usually the count or the digits in the braces.
   • Frames from another domain are drawn like any picture, with no CORS header needed: the engine never reads the canvas back.
   • **Settings handed to mount() after the page loaded are dropped.** auto() mounts on DOM ready, and mount() on a section that already carries the effect returns the existing one. A page-wide block goes in window.ScrollSequenceSettings, which auto() reads itself; a later change goes through an attribute and refresh().
   • The beats share one cell only while the sequence runs, one over the other: the stylesheet puts them there once the script has written a state. Before it, and on the canvas of the Webflow Designer, where no script runs, they sit one under the other and each can be read and edited.

One click on Copy the AI prompt copies everything an assistant needs to build this effect: the complete code, the markup, the dependency, every setting and every pitfall.
