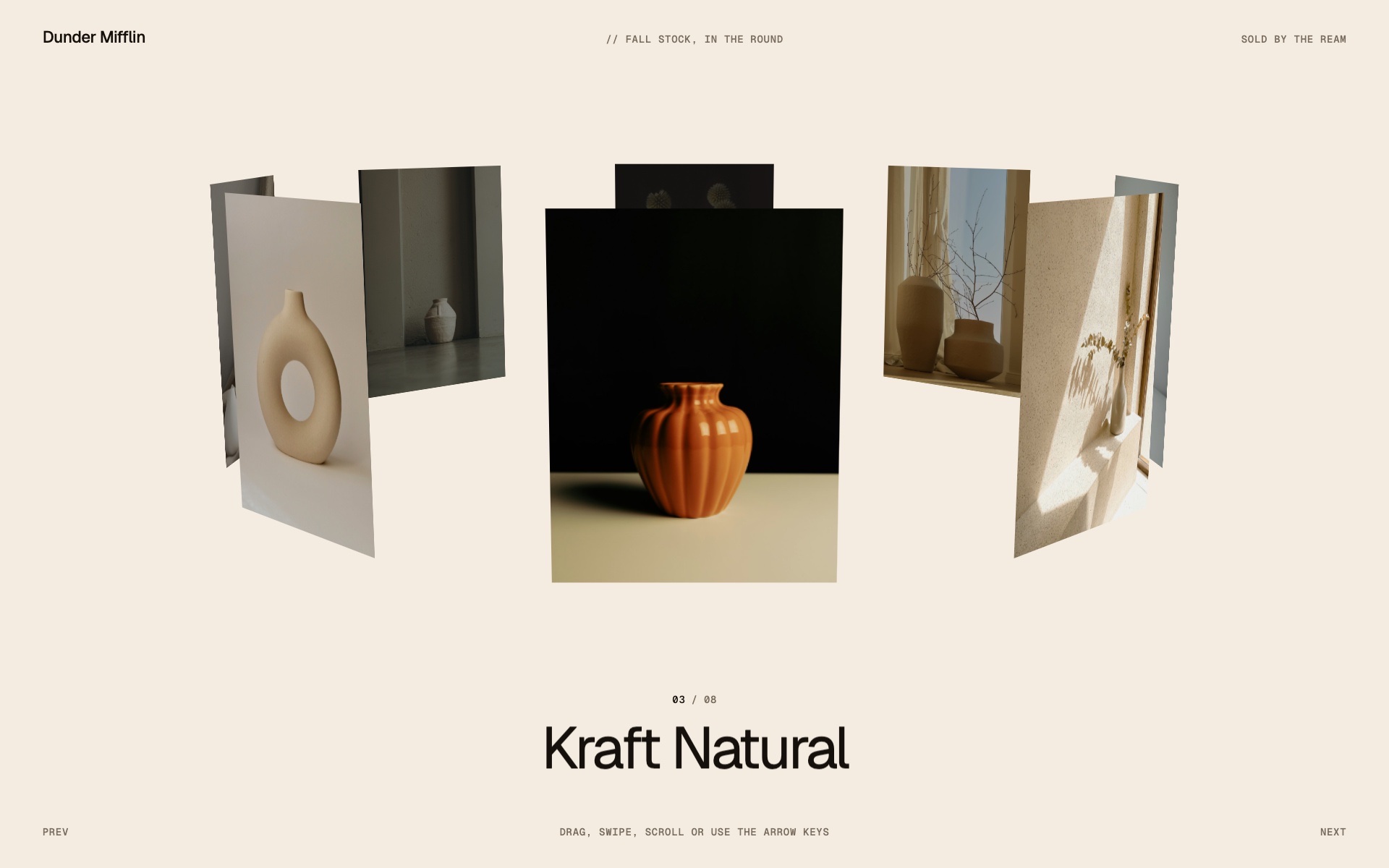

Ring carousel

1. Copy to Webflow

   Add Geist and Geist Mono to your site's fonts (Site settings, Fonts, Google Fonts) before pasting: Webflow removes any font your site has not installed.
   Copy to Webflow

2. Add custom CSS

   To keep things simple, the code ships inside the Webflow embed. You can also copy it here and add it yourself to the page or site custom code. How to choose

   Give the cards a width: the whole ring is built from it. Leave air above the stage, where the far cards rise, and put no overflow, opacity or filter on the ring box, which would flatten it: clip on the section instead.

3. Add custom JS

   To keep things simple, the code ships inside the Webflow embed. You can also copy it here and add it yourself to the page or site custom code. How to choose

4. Tune it

   Custom attributes
   Select the section on the canvas and open the Settings panel. Under Custom attributes, add a pair: the name on the left, the value on the right.

   Custom attribute	What it does
   data-ring-carousel	Marks the section that holds the ring. It takes no value: leave the value field empty. That section is what the engine mounts on, what carries the settings and the states, and what it looks for the ring, the counter, the caption line and the buttons in. Without it on any section of the page, the embed marks the section holding each ring (data-ring-carousel-ring).
   data-ring-carousel-ring	Marks the box that holds the cards, the one the engine turns. Without it the parent of the first marked card is taken; with neither, nothing is mounted and the console says so. [ Required ]
   data-ring-carousel-card	Marks one card, a child of the ring. Three at least. Without it on any of them the engine takes the ring's own children as the cards. [ Optional ]
   data-ring-carousel-stage	Marks the box the hand grabs, which also takes the wheel and the keyboard focus, and which the engine gives its perspective. Without it the parent of the ring is taken. [ Optional ]
   data-ring-carousel-caption	Marks the caption of a card, inside it. With the script it is hidden in the card and shown in the display line when the card is in front. Without it the alt of the card's picture is used. [ Optional ]
   data-ring-carousel-display	Marks the line that shows the caption of the card in front, which comes out of a mask at each change. Without it no caption is shown. [ Optional ]
   data-ring-carousel-current	Marks the number of the card in front. The engine fills it with a reel that rolls as the ring turns. Without it there is no current number. [ Optional ]
   data-ring-carousel-total	Marks the total of the counter, which the engine writes as the card count. Without it there is no total. [ Optional ]
   data-ring-carousel-prev	Marks a button that steps the ring one card back. Without it the drag, the wheel and the arrow keys still do. [ Optional ]
   data-ring-carousel-next	Marks a button that steps the ring one card further. Without it the drag, the wheel and the arrow keys still do. [ Optional ]
   data-ring-carousel-state	Written by the engine on the section: ready, or still under reduced motion. Never written by hand; the stylesheet reads it to pile the cards on the ring and show the hand. [ Optional ]
   data-ring-carousel-dragging	Written by the engine on the section while a drag runs. Never written by hand; the stylesheet reads it for the closed hand. [ Optional ]
   data-ring-carousel-active	Written by the engine on the card in front. Never written by hand; a rule of the page may read it. [ Optional ]

   Settings
   Every setting is a custom attribute too, added the same way and on the same section. An attribute always wins over the defaults written in the code.

   Attribute	Default	What it is
   data-ring-carousel-color	#15100c	Colour of the current number of the counter and of the caption, the ink in the cream and ink look. Options: any CSS colour; without the setting, --ring-carousel-color on the section takes over.
   data-ring-carousel-veil	#15100c	Colour of the veil laid over the cards according to their depth. Options: any CSS colour; the ink darkens the far cards, the colour of the page fades them into it; without the setting, --ring-carousel-veil on the section takes over.
   data-ring-carousel-dim	0.45	Opacity of the veil on the card at the very back, 0 to 1; a card on the side takes about a quarter of it.
   data-ring-carousel-tilt	10	How high the camera stands over the ring, in degrees; the far cards rise behind the one in front.
   data-ring-carousel-depth	5	Distance of the camera, in card widths.
   data-ring-carousel-gap	0.8	Space left between two cards along the ring, as a share of the card width; with the width and the number of cards it gives the radius.
   data-ring-carousel-friction	0.965	Share of its speed a spinning ring keeps from one frame to the next, at 60 frames a second.
   data-ring-carousel-snap	140	Stiffness of the spring that docks a card and that steps the ring from the keys, the buttons and a click.
   data-ring-carousel-autoplay	0	Time between two cards when the ring turns by itself, in seconds.

Two files and their pictures (8), no build step. It runs in the browser only. Load it with a script tag in plain HTML, in a client-side script in Astro, never in the frontmatter. In React, call RingCarousel.mount(ref.current) in useEffect and destroy() in its cleanup.

1. Tune it, either way

   Per element with an attribute, or once for the whole site by editing DEFAULTS at the top of the file.

   Attribute	Default	What it is	Lower	Higher
   data-ring-carousel-color	#15100c	Colour of the current number of the counter and of the caption, the ink in the cream and ink look. Options: any CSS colour; without the setting, --ring-carousel-color on the section takes over.
   data-ring-carousel-veil	#15100c	Colour of the veil laid over the cards according to their depth. Options: any CSS colour; the ink darkens the far cards, the colour of the page fades them into it; without the setting, --ring-carousel-veil on the section takes over.
   data-ring-carousel-dim	0.45	Opacity of the veil on the card at the very back, 0 to 1; a card on the side takes about a quarter of it.	At 0 no veil, every card at full ink and less depth to read	Past 0.7 the far cards are flat slabs of the veil colour
   data-ring-carousel-tilt	10	How high the camera stands over the ring, in degrees; the far cards rise behind the one in front.	At 0 the ring is seen level, the far cards hidden behind the near ones	Past 20 the ring is seen from well above and the cards lean hard towards the viewer
   data-ring-carousel-depth	5	Distance of the camera, in card widths.	Under 3 a close camera: a strong perspective, far cards much smaller	Past 8 a far camera: the ring flattens and every card is nearly the same size
   data-ring-carousel-gap	0.8	Space left between two cards along the ring, as a share of the card width; with the width and the number of cards it gives the radius.	At 0 the cards touch edge to edge, a tight drum	A wide, airy ring, which takes more of the page width
   data-ring-carousel-friction	0.965	Share of its speed a spinning ring keeps from one frame to the next, at 60 frames a second.	A heavy ring that stops soon after the hand lets go	A light ring that spins on for several cards
   data-ring-carousel-snap	140	Stiffness of the spring that docks a card and that steps the ring from the keys, the buttons and a click.	A lazy, soft dock	A quick, firm dock; past 400 it reads as a click
   data-ring-carousel-autoplay	0	Time between two cards when the ring turns by itself, in seconds.	At 0 the ring never turns by itself	A slower slideshow

2. Drive it from JavaScript

   When a button of your own has to turn the ring, when the cards change size after load, or when the page reacts to the card in front.
   JavaScript Expand Copy

   const element = document.querySelector('[data-ring-carousel]');
   element.addEventListener('ringcarousel:change', (e) => {
     console.log(e.detail);
   });

   const ring = RingCarousel.mount(element);   // the section auto() mounted, or a new one
   ring.select(3);     // throws the ring so that it docks on the fourth card
   ring.next();        // one card further, on the spring

   element.addEventListener('ringcarousel:change', (e) => {
     console.log(e.detail.index);   // the card in front
   });

   // When the carousel leaves the page:
   RingCarousel.destroy(element);   // gives back the markup as it was

   Show all 15 lines

3. Fit it to your page

   • Mark the parts. data-ring-carousel on the section, then inside it -ring on the box that holds the cards and -card on each card, a child of the ring. Three cards at least. Optional: -stage on the box the hand grabs (without it, the parent of the ring), -caption on the caption inside each card, -display on the line that shows the caption of the card in front, -current and -total on the two numbers of the counter, -prev and -next on two buttons. A ring with no card marked takes its own children as the cards.
   • The width of a card is the measure of the whole ring. The radius is the card width and the gap, times the number of cards, laid round a circle; the camera stands depth card widths away. Give the card a fluid width and the ring follows it: nothing else is sized.
   • The caption of a card is the content of its -caption element, or the alt of its picture when there is none. With the script it is hidden in the card and shown in the -display line.
   • One setting for every ring of the page, without opening the file: window.RingCarouselSettings = { tilt: 14 } in a script placed before ring-carousel.js. Three levels, least specific first: DEFAULTS, then that object, then a data-ring-carousel-* attribute on the section.
   • Inputs. Mouse and finger through Pointer Events: the stage has touch-action: pan-y, so a vertical swipe scrolls the page and a sideways one turns the ring. A press that travels less than 6 pixels is a click: the card in front keeps it, so it can be a link, and a card that is not in front comes to the front instead. A trackpad swiped sideways, or a wheel with shift, pushes the ring; a plain vertical wheel is left to the page whenever the page has somewhere to scroll, and turns the ring on a page that has not. The arrow keys step one card, Home and End go to the first and the last: they are heard when the focus is in the section, and also when nothing on the page has the focus and the ring is on screen.
   • States, written by the engine on the section: data-ring-carousel-state is ready, or still under reduced motion, and data-ring-carousel-dragging is there while a drag runs. The card in front carries data-ring-carousel-active.
   • Reduced motion: the ring stands as it is, in depth, and nothing glides. A swipe, a wheel notch, a key, a button or a click steps one card at once, the counter and the caption change without rolling, and autoplay is off.
   • From JavaScript: RingCarousel.mount(el, overrides) returns the instance: element, settings, cards, index() (the card in front), rotation() (degrees), speed() (degrees per second), phase(), isRunning(), go(i) (card i to the front on the spring), next(), prev(), select(i) (throws the ring so that its glide docks on card i), refresh() (measures again) and destroy(). destroy() takes off every listener and timer, the veils, the counter and the caption it built, the states, the marks it added and every style it wrote, so the markup is as it was. RingCarousel.destroy(el), RingCarousel.refresh(el), RingCarousel.select(el, i), RingCarousel.auto(root) and RingCarousel.defaults complete it.
   • Events, both bubbling, detail { element, index, card, cards }: ringcarousel:change each time another card comes in front, once at mount for the first, and ringcarousel:settle each time the ring comes to rest on a card.
   • The preview ships whole. snippet.html, the last part of ring-carousel.css, after the line look, left out of the Webflow Embed, and the pictures of images/ are the preview, in Geist and Geist Mono, loaded by the font tag of the Code tab. The ring-carousel-* classes are never read by the engine: on cards of your own, keep your classes, add the attributes, and drop that last part of the file and the font tag.
   • On Webflow, add the fonts first. Add Geist and Geist Mono to your site's fonts (Site settings, Fonts, Google Fonts) before pasting: the paste names them, and the Designer drops a font the site does not have.

4. Avoid the pitfalls

   • Nothing between the stage and the cards may flatten the ring. overflow other than visible, opacity under 1, a filter, a clip-path or a mask on the ring box turns the ring into a flat picture, and the cards then overlap in markup order. Clip on the section instead, which is what the preview does.
   • A section that clips cuts the side cards at its edges. That is the wanted behaviour on a phone, where the ring may be wider than the screen. A narrow column that clips cuts the ring too: give the ring the full width of the page, or a smaller card.
   • The ring rises above its box. The far cards stand higher than the card in front, by about the tilt. Leave air above the stage: the preview gives it more padding at the top than at the foot.
   • The cards need a width. A card with no width of its own takes the width of its content, and the ring is built from it.
   • **Settings handed to mount() after the page loaded are dropped.** auto() mounts on DOM ready, and mount() on a section already mounted returns the running instance. A page-wide block goes in window.RingCarouselSettings, which auto() reads itself.
   • Two rings on one screen both hear the arrow keys when nothing has the focus. Focus one of them, by a click or by Tab, and only that one turns.
   • A card seen from behind is turned round. Past the side of the ring a card would show its back, its picture mirrored: the engine turns it by half a turn at the moment it is seen edge on, so its face always reads the right way. Do not rely on backface-visibility on the cards.

One click on Copy the AI prompt copies everything an assistant needs to build this effect: the complete code, the markup, the dependency, every setting and every pitfall.
