Receipt

The order recap that comes out of a printer.

Become a member to unlock the full effect today.

Join now

Already a member? Sign in

Documentation

  1. Copy to Webflow

    Add Geist and Geist Mono to your site's fonts (Site settings, Fonts, Google Fonts) before pasting: Webflow removes any font your site has not installed.

  2. Add custom CSS

    Before the script runs a ticket keeps its room but is not seen, so it never shows printed and then prints. It shows by itself after four seconds if the script never comes, and at once without JavaScript, through the noscript line the paste carries inside its Embed. The width, the padding and the type of the paper are the page's own; leave its foot blank, 1.5em or more, for the teeth. A torn ticket falls outside its block: the section around it takes overflow: clip when it sits near the end of the page.
  3. Add custom JS

  4. Use it on your own elements

    Custom attributes
    Select the element on the canvas and open the Settings panel. Under Custom attributes, add a pair: the name on the left, the value on the right.
    Custom attributeWhat it does
    data-receipt Marks the block that holds the ticket: the slot is laid over its top and the paper comes out under it. It takes no value: leave the value field empty. The settings go on this block. The paper is the block marked data-receipt-ticket inside it.
    data-receipt-ticket Marks the paper, a child of the block: every child of the paper is one line of the ticket, in the order it reads. It takes no value. Without it the engine takes the first child of the block. [ Optional ]
    data-receipt-row On a line that holds a label, then an amount: the two go to the two ends and a dotted leader is drawn between them. It takes no value. Without it a line is plain text. [ Optional ]
    data-receipt-amount On the amount of a row: kept on the right, on one line, in tabular figures. It takes no value. [ Optional ]
    data-receipt-rule On a separator line: the print head rests four times longer on it. It takes no value. [ Optional ]
    data-receipt-total On the line of the total: fed in one fast run, and read out by a screen reader once the ticket is printed. It takes no value. [ Optional ]
    data-receipt-code="DM-4471-1009" On an empty box with a height: the engine draws the bars of that string in it, a Code 128 barcode in the colour of the ink. Characters outside plain ASCII are left out. [ Optional ]
    data-receipt-tear-label="Tear off the receipt" On the block: the name a screen reader gives the grip at the foot of the ticket. Without it the name is Tear off the receipt. [ Optional ]
    data-receipt-counter On the section of the preview: takes away the room the Webflow Embed would otherwise occupy at its foot. It takes no value, and a section of your own does not need it. [ Optional ]
    data-receipt-state Written by the engine on the block: idle while only the edge of the paper is out, printing, printed, tearing, falling, or static under reduced motion. Never written by hand; the stylesheet reads it. [ Optional ]
    Settings
    Every setting is a custom attribute too, added the same way and on the same element. An attribute always wins over the defaults written in the code.
    AttributeDefaultWhat it is
    data-receipt-paper #f4ece0 Colour of the paper. Options: any CSS colour. Left on its default, the paper keeps the background of its own class, so a Webflow class or a rule of the page decides. The edge the slot keeps after a tear takes the same colour.
    data-receipt-ink #15100c Colour of the print: the text, the leaders, the bars of a code. Options: any CSS colour. Left on its default with paper, the text keeps the colour of its own class. Setting either one applies both.
    data-receipt-trigger view What starts the print. Options: view prints when a third of the block is in the window; scroll feeds the paper as the block rises through the window, and never takes it back when the page scrolls up; manual waits for print().
    data-receipt-once on Whether the ticket prints only the first time it is seen: on or off. Options: on prints once and leaves the ticket hanging; off takes the ticket back when the block has left the window, and prints it again the next time.
    data-receipt-speed 16em Paper the printer feeds in a second, any CSS length.
    data-receipt-step 0.5em Length of one notch of the feed, any CSS length. The paper moves a notch, holds, moves the next.
    data-receipt-pause 0.09 Rest of the print head after each line, in seconds. A separator keeps it four times as long, a total twice, after a rest of three before its run.
    data-receipt-sway 1 Swing and flap the hanging paper takes from each notch, 0 to 3.
    data-receipt-curl 1 Forward curl of the hanging paper, 0 to 3: the foot leans towards the eye.
    data-receipt-wear 0.5 Thermal flaws, 0 to 1: two pale columns where a dot of the head is tired, and bands where the ink took less.
    data-receipt-seed 7 Which flaws, and which way the paper swings: any number. Options: the same seed always gives the same ticket; give two tickets of a page two seeds.
    data-receipt-tear on Whether the printed ticket can be torn off: on or off. Options: on adds a grip over the foot of the ticket, for a pointer, a finger and the keyboard; off leaves the ticket hanging, and its foot selectable.
    data-receipt-pull 3.4em Travel the paper resists before it rips, any CSS length.
    data-receipt-again on Whether a new ticket prints after a tear: on or off. Options: on prints the next one half a second after the torn one is gone; off leaves the slot with its edge of paper until print() is called.
    data-receipt-slot on The slot the paper comes out of: on or off. Options: on draws a dark bezel, a slit and a lip over the top of the block, a little wider than the paper; off draws nothing, and the paper comes out of the top edge of the block, under whatever the page puts there.

What it does

Receipt is a scroll animation for Webflow and vanilla JavaScript, with no library. Also called receipt printing animation, receipt printer effect or thermal receipt animation.

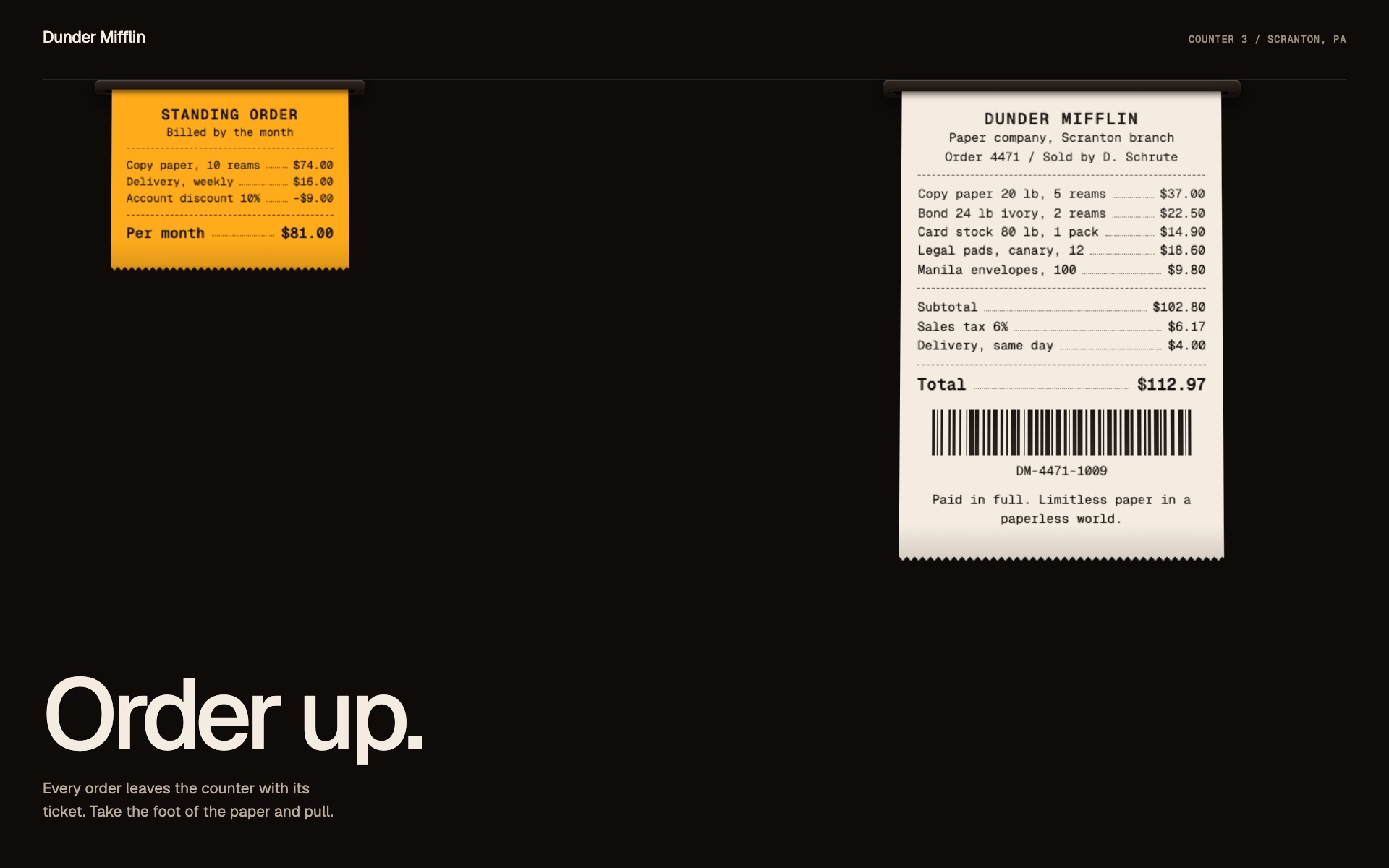

The order recap that comes out of a printer. The content is an ordinary list in plain markup, a header, rows with a label and an amount, separators, a total, a footer line, a code, and the component turns it into a printed ticket: narrow paper, amounts on the right behind dotted leaders, a foot cut in teeth. The paper feeds out of a slot in notches, like a thermal printer, the foot of the ticket first and each line clearing the slot in its turn; the rhythm of the print head can be read, a short rest after a line, a longer one on a separator, one fast run for the total. Every notch gives the hanging paper a small swing and a flap forward, slower as the ticket gets longer. Once printed the ticket can be torn off: taken by its foot and pulled down, it gives a little, holds, then rips across the slot from one corner to the other, turning about the corner that still holds, comes away in the hand and falls like a sheet when it is let go. The slot keeps the other half of the teeth, a fresh edge of paper, and prints the next one. It prints when it comes into view, with the scroll, or from a script, and a line added to a ticket that hangs makes the paper feed a little more, which is what a live basket or a price calculator needs. A string becomes a real Code 128 barcode. Faint thermal flaws, a pale column, uneven ink, come from a seed. The lines stay the page's own elements: selectable, read in order by a screen reader, the total announced once it is printed. Under reduced motion the ticket hangs printed and nothing moves; without JavaScript it is a plain receipt. No library. Pattern type order summary, price recap, printed ticket.

Updated

Questions

Mark a block data-receipt and the paper inside it data-receipt-ticket: every child of the paper is one line. A line marked data-receipt-row holds a label then an amount marked data-receipt-amount, laid at the two ends with a dotted leader between them; data-receipt-rule is a separator and data-receipt-total the total. The ticket prints when it comes into view.

No. The lines stay the page's own elements, selectable and read in order by a screen reader, and the paper is fed out of the slot behind a clip-path. The teeth of the foot are a CSS mask, and the swing of the hanging paper is computed by the engine.

Yes, with data-receipt-trigger: view, the default, prints when the ticket comes into view, scroll prints with the scroll and manual waits for print() from a script. data-receipt-speed, 16em a second by default, is the paper the printer feeds and data-receipt-pause the rest of the print head after each line.

Yes. The foot of a printed ticket is a grip: pulled down, the paper gives a little, then rips across the slot and falls when it is let go; on the keyboard, Enter or Space tears it. The slot then prints the next one, unless data-receipt-again="off", and data-receipt-tear="off" makes a ticket that only hangs.

Yes. receipt.add(line) puts a line in a hanging ticket, before the total, and feeds the paper by its height; to change an amount, write the new text in the element. An empty box marked data-receipt-code="DM-4471-1009" is drawn as a real Code 128 barcode of that string, in the colour of the ink.
