Range slider

1. Copy to Webflow

   Add Geist and Geist Mono to your site's fonts (Site settings, Fonts, Google Fonts) before pasting: Webflow removes any font your site has not installed.
   Copy to Webflow

2. Add custom CSS

   To keep things simple, the code ships inside the Webflow embed. You can also copy it here and add it yourself to the page or site custom code. How to choose

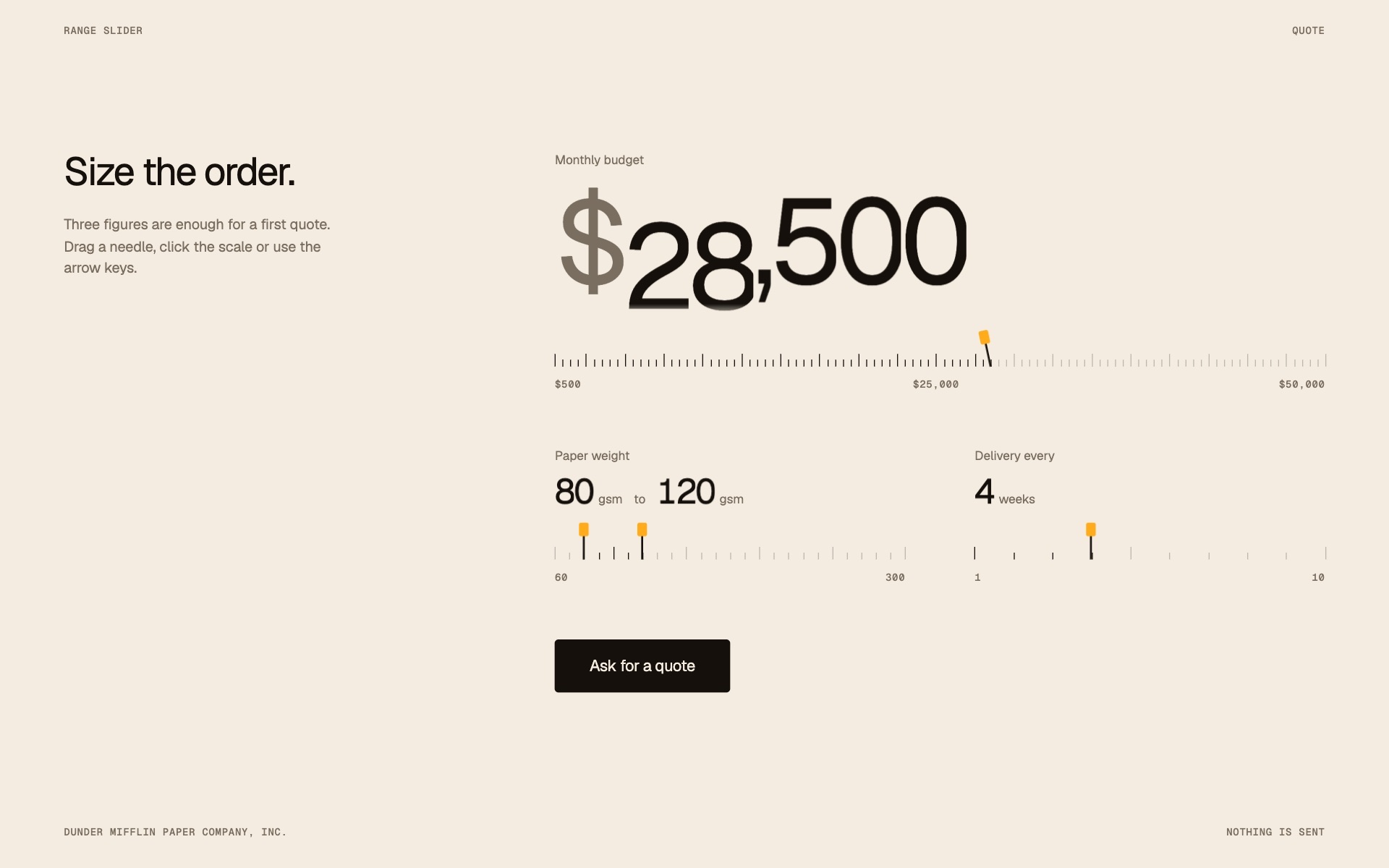

   The look of the preview is the range-slider-* classes of the paste; the size of a figure is the font size of the box marked data-range-slider-output. The Embed draws the scale, the needle and the figure, and reads three variables with a fallback, --range-slider-ink (the needle and the marks it has passed), --range-slider-rest (the other marks) and --range-slider-quiet (the labels and the unit): set them on the form, or on anything above it, in a rule of your own. The head of the needle is the setting color. The track is 70px tall and as wide as the box the field is in. The labels of the scale are set in Geist Mono by the class range-slider-label, which the engine writes: give that class another font-family in a rule of your own to change it.

3. Add custom JS

   To keep things simple, the code ships inside the Webflow embed. You can also copy it here and add it yourself to the page or site custom code. How to choose

4. Use it on your own elements

   Custom attributes
   Select the element on the canvas and open the Settings panel. Under Custom attributes, add a pair: the name on the left, the value on the right.

   Custom attribute	What it does
   data-range-slider	Marks the input that becomes a slider. It takes no value: leave the value field empty. The settings below go on the same element, or on the box of a pair for both of its inputs.
   data-range-slider-min, data-range-slider-max, data-range-slider-step, data-range-slider-value	On the input, in Webflow: the two ends of the scale, the size of a step and the first value, as numbers. A Webflow field has no setting for them. In plain HTML they are the input's own min, max, step and value, and these four are not needed. Without them the scale runs from 0 to 100 by steps of 1. [ Required ]
   data-range-slider-output	On the box that shows the value. It takes no value when the box and the input are children of the same element; or the id of its input when the box is anywhere else on the page. Its text is what shows before the script, and on the Designer canvas. Without it the slider works and nothing writes the value. [ Optional ]
   data-range-slider-pair	On a box that holds two marked inputs, the lower one first: they share one scale and cannot cross. It takes no value, and carries the settings for both. The first box marked data-range-slider-output in its parent shows the lower value, the second the upper one. [ Optional ]
   data-range-slider-field	On a box around an input and the box of its value, when the two are not children of the same element. It takes no value. [ Optional ]
   data-range-slider-submit	On the Link block that stands in for the send button of the form, as in the paste. It takes no value. The engine makes it send the form it is in. A native submit button needs nothing. [ Optional ]
   data-range-slider-ready	Written by the engine on a mounted input or pair. The track it adds carries data-range-slider-track, with data-range-slider-held while a needle is held; a needle carries data-range-slider-held and data-range-slider-focus, a mark the needle has passed data-range-slider-on. Never written by hand; the stylesheet reads them, and so can a rule of yours. [ Optional ]

   Settings
   Every setting is a custom attribute too, added the same way and on the same element. An attribute always wins over the defaults written in the code.

   Attribute	Default	What it is
   data-range-slider-color	#ffab1a	The colour of the head of the needle. Options: any CSS colour. The stem, the marks and the focus ring are the ink, --range-slider-ink.
   data-range-slider-currency	empty	The currency the value is written in, as a three letter code. Options: USD, EUR, GBP, any ISO 4217 code; empty for a value that is not money. The sign is placed where the language puts it, $12,500 in English, 12 500 € in French.
   data-range-slider-unit	empty	The unit written after the value, when it is not money. Options: a unit the browser knows, in English and in the singular, percent, kilometer, kilogram, hour, written short and in the language of the page (50%, 12 km); or any word of yours, reams, gsm; or two words parted by a vertical bar, the singular then the plural (week, then weeks), the first for one and the second for several.
   data-range-slider-locale	empty	The language the figures are written in. Options: empty, the language of the page, read from the nearest lang attribute, then from the browser; or a tag, fr, de-CH, en-GB.
   data-range-slider-ticks	empty	The values of the scale that carry a label. Options: empty, the two ends; or a list of values, 500, 25000, 50000. A label that would run into its neighbour on a narrow screen is left out.
   data-range-slider-gap	1	In a pair, the least distance the two needles keep, counted in steps.
   data-range-slider-lean	12	How far the needle leans when it is pulled fast, in degrees.
   data-range-slider-roll	0.5	The time a column of the figure takes to turn, in seconds.

Two files, no build step. It runs in the browser only. Load it with a script tag in plain HTML, in a client-side script in Astro, never in the frontmatter. In React, call RangeSlider.mount(ref.current) in useEffect and destroy() in its cleanup.

1. Tune it, either way

   Per element with an attribute, or once for the whole site by editing DEFAULTS at the top of the file.

   Attribute	Default	What it is	Lower	Higher
   data-range-slider-color	#ffab1a	The colour of the head of the needle. Options: any CSS colour. The stem, the marks and the focus ring are the ink, --range-slider-ink.
   data-range-slider-currency	empty	The currency the value is written in, as a three letter code. Options: USD, EUR, GBP, any ISO 4217 code; empty for a value that is not money. The sign is placed where the language puts it, $12,500 in English, 12 500 € in French.
   data-range-slider-unit	empty	The unit written after the value, when it is not money. Options: a unit the browser knows, in English and in the singular, percent, kilometer, kilogram, hour, written short and in the language of the page (50%, 12 km); or any word of yours, reams, gsm; or two words parted by a vertical bar, the singular then the plural (week, then weeks), the first for one and the second for several.
   data-range-slider-locale	empty	The language the figures are written in. Options: empty, the language of the page, read from the nearest lang attribute, then from the browser; or a tag, fr, de-CH, en-GB.
   data-range-slider-ticks	empty	The values of the scale that carry a label. Options: empty, the two ends; or a list of values, 500, 25000, 50000. A label that would run into its neighbour on a narrow screen is left out.
   data-range-slider-gap	1	In a pair, the least distance the two needles keep, counted in steps.	0 lets the two values meet	Keeps a wider bracket, 5 for five steps at least
   data-range-slider-lean	12	How far the needle leans when it is pulled fast, in degrees.	Stiffer; 0 and it stays upright	Looser, more shown; over 18 it starts to wave
   data-range-slider-roll	0.5	The time a column of the figure takes to turn, in seconds.	Snappier; 0 and the figure changes at once	Slower and more shown; over 0.8 the figure is late on the needle

2. Drive it from JavaScript

   When a script reads the value as it moves, sets it, or adds sliders after the page has loaded.
   JavaScript Expand Copy

   const element = document.querySelector('[data-range-slider]');
   element.addEventListener('range-slider:change', (e) => {
     console.log(e.detail);
   });

   // Follow the value: a price that is computed, a summary that updates.
   element.addEventListener('range-slider:change', (event) => {
     console.log(event.detail.value, event.detail.text);   // 12500, '12,500 US dollars'
   });

   const slider = RangeSlider.mount(element);   // the input auto() mounted, or a new one
   slider.set(30000);                           // the needle travels, the figure turns
   slider.set(30000, true);                     // at once
   slider.value();                              // 30000, or [80, 120] for a pair

   // When the form leaves the page:
   slider.destroy();   // the input is back where it was, a plain range input

   Show all 17 lines

3. Fit it to your page

   The stylesheet goes in the head and the script before the end of the body; the markup of one slider is three elements:

   html <label for="budget">Monthly budget</label> <div data-range-slider-output>$12,500</div> <input id="budget" name="budget" type="range" min="500" max="50000" step="500" value="12500" data-range-slider data-range-slider-currency="USD">

   The text of the box marked data-range-slider-output is what shows without the script; with it, the engine writes the figure there. The size of the figure is the font size of that box: a headline size for one slider, a text size for a row of them.

   A pair, for a bracket:

   html <div role="group" aria-label="Paper weight" data-range-slider-pair data-range-slider-unit="gsm"> <input type="range" name="from" min="60" max="300" step="10" value="80" aria-label="Lightest" data-range-slider> <input type="range" name="to" min="60" max="300" step="10" value="120" aria-label="Heaviest" data-range-slider> </div>

   The first box marked data-range-slider-output in the parent of the pair shows the lower value, the second the upper one.

   The labelled values can also come from a <datalist> named by the list attribute of the input, the HTML way; the label of an option is then the text under its mark.

   The page hears a change the way it hears any input: input while the value moves, change when it is let go. range-slider:change says the same with the value as a number and as words.

   js const slider = RangeSlider.mount(document.querySelector('#budget')); slider.set(30000); // the needle travels, the figure turns slider.set(30000, true); // at once slider.value(); // 30000, or [80, 120] for a pair

4. Avoid the pitfalls

   • Name each input. The slider is a form field like any other: without a name the form does not send it. In a pair, each input has its own name and its own aria-label, and the box carries role="group" and a name.
   • The value box holds text only. The engine replaces what is in it and puts it back on destroy(). Do not put the label of the field inside it.
   • **min, max and step are read once.** After changing them from a script, destroy() then mount(). A value written from a script, input.value = 20000, is picked up by refresh(), or use set().
   • The track is 70px tall, 44 for the scale and the rest for its labels. It is as wide as the parent of the input: give that parent a width.
   • Colours are custom properties read with a fallback: set --range-slider-ink, --range-slider-rest and --range-slider-quiet on the field or on the page for a dark ground. The head of the needle is the setting color.
   • Webflow has no range field. The paste carries a number field marked data-range-slider, with the scale in data-range-slider-min, -max, -step and -value; the engine turns it into a range input when the page loads. On the canvas, which runs no Embed, it shows as a plain field.
   • A unit in the plural: unit takes week|weeks for a word of yours; the units the browser knows are written short, wk, which is rarely wanted in a headline.

One click on Copy the AI prompt copies everything an assistant needs to build this effect: the complete code, the markup, the dependency, every setting and every pitfall.
