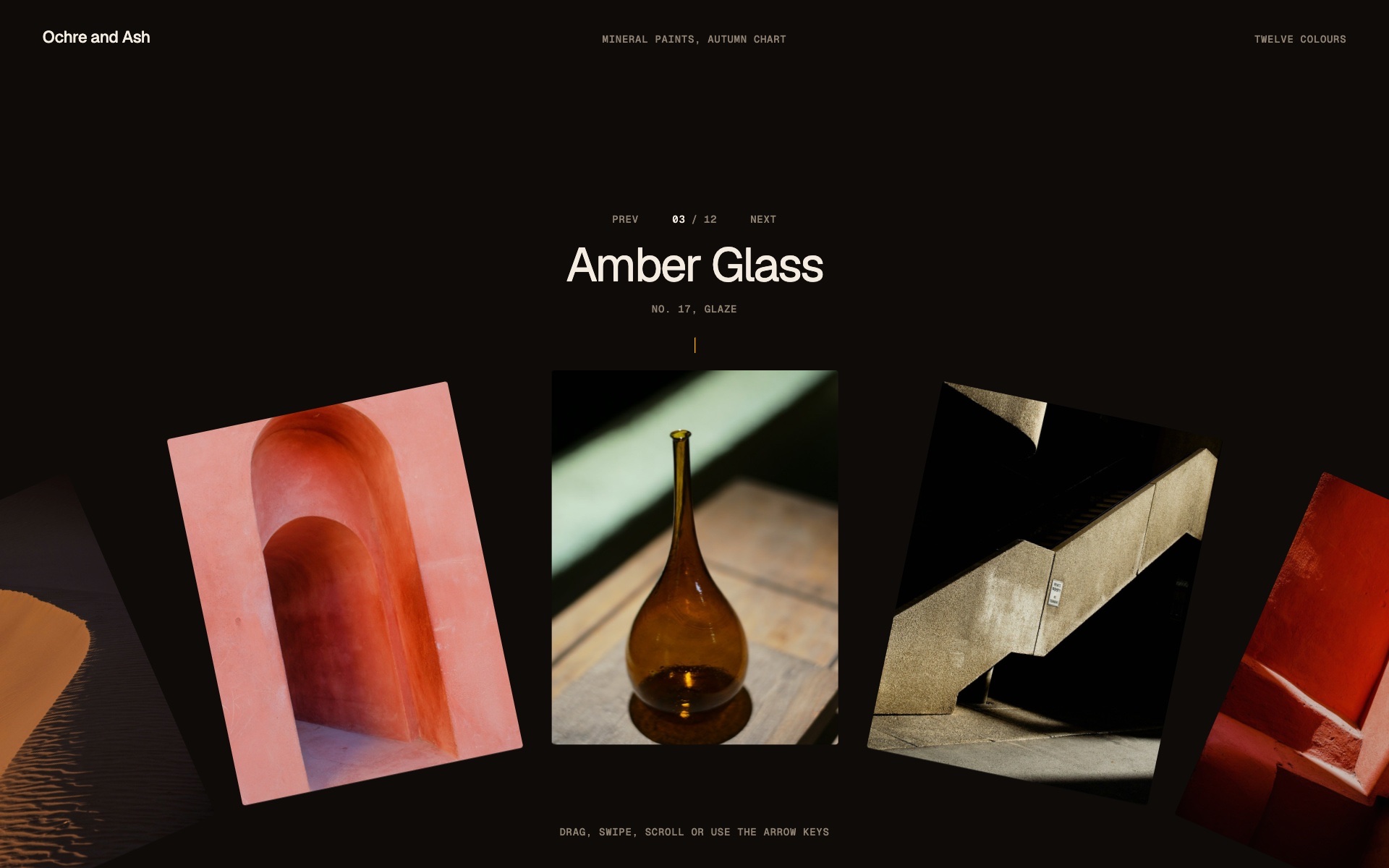

Radial slider

1. Copy to Webflow

   Add Geist and Geist Mono to your site's fonts (Site settings, Fonts, Google Fonts) before pasting: Webflow removes any font your site has not installed.
   Copy to Webflow

2. Add custom CSS

   To keep things simple, the code ships inside the Webflow embed. You can also copy it here and add it yourself to the page or site custom code. How to choose

   Give the cards a width: the whole wheel is built from the box of a card. Leave the section room under the card at the top, where the side cards sink, and set no transform or opacity on the cards themselves: the script writes both.

3. Add custom JS

   To keep things simple, the code ships inside the Webflow embed. You can also copy it here and add it yourself to the page or site custom code. How to choose

4. Tune it

   Custom attributes
   Select the section on the canvas and open the Settings panel. Under Custom attributes, add a pair: the name on the left, the value on the right.

   Custom attribute	What it does
   data-radial-slider	Marks the section that holds the wheel. It takes no value: leave the value field empty. That section is what the engine mounts on, what carries the settings and the states, what cuts the cards that sink past its edges, and what it looks for the wheel, the counter, the caption box and the buttons in. Without it on any section of the page, the embed marks the section holding each wheel (data-radial-slider-wheel).
   data-radial-slider-wheel	Marks the box that holds the cards, the top of the rim. Without it the parent of the first marked card is taken; with neither, nothing is mounted and the console says so. [ Required ]
   data-radial-slider-card	Marks one card, a child of the wheel. Two at least, and as many as you like: the wheel is endless when they cover its arc and one card more, ten with the defaults, and keeps two ends with fewer. Without it on any of them the engine takes the wheel's own children as the cards. [ Optional ]
   data-radial-slider-stage	Marks the box the hand grabs, which also takes the mouse wheel and the keyboard focus. Without it the parent of the wheel is taken. [ Optional ]
   data-radial-slider-caption	Marks the caption of a card, inside it. With the script it is hidden in the card and shown in the display box when the card is at the top. Without it the alt of the card's picture is used. [ Optional ]
   data-radial-slider-display	Marks the box that shows the caption of the card at the top, which comes out of a mask at each change. Without it no caption is shown. [ Optional ]
   data-radial-slider-current	Marks the number of the card at the top. The engine fills it with a reel that rolls as the wheel turns. Without it there is no current number. [ Optional ]
   data-radial-slider-total	Marks the total of the counter, which the engine writes as the card count. Without it there is no total. [ Optional ]
   data-radial-slider-prev	Marks a button that steps the wheel one card back. Without it the drag, the mouse wheel and the arrow keys still do. [ Optional ]
   data-radial-slider-next	Marks a button that steps the wheel one card further. Without it the drag, the mouse wheel and the arrow keys still do. [ Optional ]
   data-radial-slider-state	Written by the engine on the section: ready, or still under reduced motion. Never written by hand; the stylesheet reads it to pile the cards at the top of the wheel, cut the section and show the hand. [ Optional ]
   data-radial-slider-dragging	Written by the engine on the section while a drag runs. Never written by hand; the stylesheet reads it for the closed hand. [ Optional ]
   data-radial-slider-endless	Written by the engine on the section while the wheel goes round without end, and absent while it has a first and a last card. Never written by hand; a rule of the page may read it. [ Optional ]
   data-radial-slider-active	Written by the engine on the card at the top. Never written by hand; a rule of the page may read it. [ Optional ]

   Settings
   Every setting is a custom attribute too, added the same way and on the same section. An attribute always wins over the defaults written in the code.

   Attribute	Default	What it is
   data-radial-slider-color	#f4ece0	Colour of the current number of the counter and of the caption, the cream in the dark look. Options: any CSS colour; without the setting, --radial-slider-color on the section takes over.
   data-radial-slider-radius	6	Radius of the wheel, from its hub to the middle of a card, in card widths.
   data-radial-slider-gap	0.1	Space left between two cards where they are closest, at their feet, as a share of the card width.
   data-radial-slider-arc	50	Half opening of the arc the cards show on, in degrees from the top; a card reaching it is taken out.
   data-radial-slider-fade	1	How far a card has faded when it reaches the end of the arc, 0 to 1; it fades as the square of its way there.
   data-radial-slider-loop	1	Whether the wheel is endless when its cards cover the arc and one card more. Options: 1 lets it go round without end when the cards allow it; 0 always keeps a first and a last card, with a soft stop at each.
   data-radial-slider-friction	0.965	Share of its speed a spinning wheel keeps from one frame to the next, at 60 frames a second.
   data-radial-slider-snap	140	Stiffness of the spring that docks a card and that steps the wheel from the keys, the buttons and a click.
   data-radial-slider-autoplay	0	Time between two cards when the wheel turns by itself, in seconds.

Two files and their pictures (12), no build step. It runs in the browser only. Load it with a script tag in plain HTML, in a client-side script in Astro, never in the frontmatter. In React, call RadialSlider.mount(ref.current) in useEffect and destroy() in its cleanup.

1. Tune it, either way

   Per element with an attribute, or once for the whole site by editing DEFAULTS at the top of the file.

   Attribute	Default	What it is	Lower	Higher
   data-radial-slider-color	#f4ece0	Colour of the current number of the counter and of the caption, the cream in the dark look. Options: any CSS colour; without the setting, --radial-slider-color on the section takes over.
   data-radial-slider-radius	6	Radius of the wheel, from its hub to the middle of a card, in card widths.	A small wheel: a tight arc, the side cards lean hard and sink fast	A great wheel: a shallow arc, close to a straight row, and more cards needed for an endless one
   data-radial-slider-gap	0.1	Space left between two cards where they are closest, at their feet, as a share of the card width.	At 0 the feet of the cards touch	Cards set well apart, fewer of them on screen
   data-radial-slider-arc	50	Half opening of the arc the cards show on, in degrees from the top; a card reaching it is taken out.	A narrow window on the top of the wheel, which fewer cards are enough to make endless	Cards shown far down the sides; the wheel needs more cards to be endless
   data-radial-slider-fade	1	How far a card has faded when it reaches the end of the arc, 0 to 1; it fades as the square of its way there.	At 0 every card stays at full ink until it is taken out	At 1 a card has gone by the time it reaches the end of the arc
   data-radial-slider-loop	1	Whether the wheel is endless when its cards cover the arc and one card more. Options: 1 lets it go round without end when the cards allow it; 0 always keeps a first and a last card, with a soft stop at each.
   data-radial-slider-friction	0.965	Share of its speed a spinning wheel keeps from one frame to the next, at 60 frames a second.	A heavy wheel that stops soon after the hand lets go	A light wheel that spins on for several cards
   data-radial-slider-snap	140	Stiffness of the spring that docks a card and that steps the wheel from the keys, the buttons and a click.	A lazy, soft dock	A quick, firm dock; past 400 it reads as a click
   data-radial-slider-autoplay	0	Time between two cards when the wheel turns by itself, in seconds.	At 0 the wheel never turns by itself	A slower slideshow

2. Drive it from JavaScript

   When a button of your own has to turn the wheel, when the cards change size after load, or when the page reacts to the card at the top.
   JavaScript Expand Copy

   const element = document.querySelector('[data-radial-slider]');
   element.addEventListener('radialslider:change', (e) => {
     console.log(e.detail);
   });

   const wheel = RadialSlider.mount(element);   // the section auto() mounted, or a new one
   wheel.select(3);     // throws the wheel so that it docks on the fourth card
   wheel.next();        // one card further, on the spring

   element.addEventListener('radialslider:change', (e) => {
     console.log(e.detail.index);   // the card at the top
   });

   // When the slider leaves the page:
   RadialSlider.destroy(element);   // gives back the markup as it was

   Show all 15 lines

3. Fit it to your page

   • Mark the parts. data-radial-slider on the section, then inside it -wheel on the box that holds the cards and -card on each card, a child of the wheel. Two cards at least. Optional: -stage on the box the hand grabs (without it, the parent of the wheel), -caption on the caption inside each card, -display on the box that shows the caption of the card at the top, -current and -total on the two numbers of the counter, -prev and -next on two buttons. A wheel with no card marked takes its own children as the cards.
   • Any number of cards. The engine counts them. The step between two cards comes from the box of a card, the radius and the gap, not from their number: adding cards makes the row longer, not the cards closer. The wheel is endless when the row covers the arc and one card more, twice arc plus one step: ten cards with the defaults and the cards of the preview. With fewer it keeps a first and a last card, the hand pulling a little past each and a throw sinking softly into them. To make a short row endless, narrow the arc.
   • The box of a card is the measure of the whole wheel. The radius is radius card widths, so the wheel grows and shrinks with the card and the arc keeps its shape at every size. Give the card a fluid width and the wheel follows it: nothing else is sized. The hub sits one radius under the middle of the card at the top, so leave the section room under that card, where the side cards sink.
   • The section cuts what sinks past it. Once mounted, the section has overflow: clip, so the side cards never widen the page or lie over the next section.
   • The caption of a card is the content of its -caption element, or the alt of its picture when there is none. With the script it is hidden in the card and shown in the -display box. It may hold several lines: the preview has a name and a note.
   • One setting for every wheel of the page, without opening the file: window.RadialSliderSettings = { radius: 8 } in a script placed before radial-slider.js. Three levels, least specific first: DEFAULTS, then that object, then a data-radial-slider-* attribute on the section.
   • Inputs. Mouse and finger through Pointer Events: the stage has touch-action: pan-y, so a vertical swipe scrolls the page and a sideways one turns the wheel. The wheel turns by the angle the hand travels round the hub, so the card under the hand stays under it. A press that travels less than 6 pixels is a click: the card at the top keeps it, so it can be a link, and a card that is not at the top comes to the top instead. A slow drag let go a little way towards the next card goes to that card. A trackpad swiped sideways, or a mouse wheel with shift, pushes the wheel; a plain vertical wheel is left to the page whenever the page has somewhere to scroll, and turns the wheel on a page that has not. The arrow keys step one card, Home and End go to the first and the last: they are heard when the focus is in the section, and also when nothing on the page has the focus and the wheel is on screen.
   • States, written by the engine on the section: data-radial-slider-state is ready, or still under reduced motion, data-radial-slider-dragging is there while a drag runs, and data-radial-slider-endless while the wheel has no ends. The card at the top carries data-radial-slider-active.
   • Reduced motion: the wheel stands as it is and nothing glides. A swipe, a wheel notch, a key, a button or a click steps one card at once, the counter and the caption change without rolling, and autoplay is off.
   • From JavaScript: RadialSlider.mount(el, overrides) returns the instance: element, settings, cards, index() (the card at the top), rotation() (degrees), speed() (degrees per second), step() (degrees between two cards), endless(), phase(), isRunning(), go(i) (card i to the top on the spring), next(), prev(), select(i) (throws the wheel so that its glide docks on card i), refresh() (measures again) and destroy(). destroy() takes off every listener and timer, the counter and the caption it built, the states, the marks it added and every style it wrote, so the markup is as it was. RadialSlider.destroy(el), RadialSlider.refresh(el), RadialSlider.select(el, i), RadialSlider.auto(root) and RadialSlider.defaults complete it.
   • Events, both bubbling, detail { element, index, card, cards }: radialslider:change each time another card comes to the top, once at mount for the first, and radialslider:settle each time the wheel comes to rest on a card.
   • The preview ships whole. snippet.html, the last part of radial-slider.css, after the line look, left out of the Webflow Embed, and the pictures of images/ are the preview, in Geist and Geist Mono, loaded by the font tag of the Code tab. The radial-slider-* classes are never read by the engine: on cards of your own, keep your classes, add the attributes, and drop that last part of the file and the font tag.
   • On Webflow, add the fonts first. Add Geist and Geist Mono to your site's fonts (Site settings, Fonts, Google Fonts) before pasting: the paste names them, and the Designer drops a font the site does not have.

4. Avoid the pitfalls

   • The cards need a width, and one size. A card with no width of its own takes the width of its content, and the wheel is built from the widest and the tallest card. Cards of different heights are centred on the rim.
   • Leave the cards their transform and their opacity. The engine writes transform, transform-origin, opacity and visibility on each card. A rule of the page that sets one of them on the card is overwritten; put a hover effect on something inside the card.
   • A wheel that has ends where an endless one was wanted has too few cards for its arc. Read data-radial-slider-endless on the section, or endless(): add cards, or lower arc until twice the arc plus one step fits in the row.
   • The section clips, so nothing of the wheel shows outside it. A short section cuts the card at the top itself. Give the section the height of the card plus the room it needs over and under it.
   • **Settings handed to mount() after the page loaded are dropped.** auto() mounts on DOM ready, and mount() on a section already mounted returns the running instance. A page-wide block goes in window.RadialSliderSettings, which auto() reads itself.
   • Two wheels on one screen both hear the arrow keys when nothing has the focus. Focus one of them, by a click or by Tab, and only that one turns.
   • Cards added or removed after mount are not seen: call RadialSlider.destroy(el) then RadialSlider.mount(el).

One click on Copy the AI prompt copies everything an assistant needs to build this effect: the complete code, the markup, the dependency, every setting and every pitfall.
