Glass surface

1. Copy to Webflow

   Add Geist and Geist Mono to your site's fonts (Site settings, Fonts, Google Fonts) before pasting: Webflow removes any font your site has not installed.
   Copy to Webflow

2. Add custom CSS

   To keep things simple, the code ships inside the Webflow embed. You can also copy it here and add it yourself to the page or site custom code. How to choose

   The pane is a box of your own: its class gives its size, its padding, its position and its border-radius, which the bend follows. Do not give it a background colour, an opacity, a filter or a backdrop filter: the Embed writes its ground. Keep its padding at least as wide as the setting bevel, so the words stay clear of the bend. A parent with an opacity under 100%, a filter or a blend mode stops the pane from seeing the page behind it, and a parent set to overflow: hidden stops a sticky pane from staying in the window.

3. Add custom JS

   To keep things simple, the code ships inside the Webflow embed. You can also copy it here and add it yourself to the page or site custom code. How to choose

4. Use it on your own elements

   Custom attributes
   Select the element on the canvas and open the Settings panel. Under Custom attributes, add a pair: the name on the left, the value on the right.

   Custom attribute	What it does
   data-glass-surface	Goes on the box that becomes a pane of glass, a bar, a card, a panel, and takes no value: leave the value field empty. What passes behind that box is blurred and bent at its edge, and its rim catches the light. The settings below go on the same element.
   data-glass-surface-mode, data-glass-surface-ready	Written by the engine on the pane: refract where the browser paints the bend, Chrome, Edge and the other Chromium browsers, blur where it does not, Safari and Firefox, and ready once it is mounted. Never written by hand; the stylesheet reads the first, and so can a rule of yours. [ Optional ]
   data-glass-surface-defs	Written by the engine on the one hidden svg it adds at the end of the page, which holds a filter per pane. Never written by hand, and removed with the last pane. [ Optional ]
   data-glass-surface-drift	The motion of the preview, read by the stylesheet alone and never by the engine: the pane that carries it wanders slowly around its place, so the glass always has something new to bend. Leave it out and the pane stays where its class puts it; it stops under reduced motion. [ Optional ]

   Settings
   Every setting is a custom attribute too, added the same way and on the same element. An attribute always wins over the defaults written in the code.

   Attribute	Default	What it is
   data-glass-surface-tint	#1e1711	Colour laid over what is seen through the glass; written on the pane as --glass-surface-tint. A dark colour makes smoked glass, which keeps light text readable over a bright photograph; a light one makes frosted white glass, for dark text. Options: any opaque CSS colour; an empty string in the settings block writes nothing and leaves the --glass-surface-tint of your stylesheet.
   data-glass-surface-rim	#ffe6bd	Colour of the line of light around the pane and of the glow it leaves on the glass; written as --glass-surface-rim. Options: any opaque CSS colour; an empty string leaves the --glass-surface-rim of your stylesheet.
   data-glass-surface-density	0.42	Share of the tint laid over the glass, from 0 to 1. It is what keeps the words on the pane readable.
   data-glass-surface-blur	12	Blur of what is behind the face of the pane, in px. The bevel stays clear of it, so the bend is seen sharp.
   data-glass-surface-refraction	20	How far the edge bends what is behind, in px: at the very edge the backdrop is read that far towards the inside of the pane. Only where the bend is painted, Chromium.
   data-glass-surface-bevel	16	Width of the edge that bends, in px, from the edge of the pane inwards. It never takes more than half of the smaller side.
   data-glass-surface-dispersion	0.08	How much the colours split inside the bend, from 0 to 1: red is bent a little more than green and blue a little less, as a thick edge does.
   data-glass-surface-glint	0.9	Strength of the light on the rim, from 0 to 1, of the faint line all round as of the bright spot.
   data-glass-surface-reach	260	How far the light spreads along the rim from where it is, in px. From outside the pane it is also the distance at which the pointer starts to light the nearest edge.
   data-glass-surface-light	both	What moves the light. Options: both, the pointer where there is one and the scroll as soon as the page scrolls; pointer; scroll; none, the light stays where the stylesheet rests it, on the top edge.

Two files, no build step. It runs in the browser only. Load it with a script tag in plain HTML, in a client-side script in Astro, never in the frontmatter. In React, call GlassSurface.mount(ref.current) in useEffect and destroy() in its cleanup.

1. Tune it, either way

   Per element with an attribute, or once for the whole site by editing DEFAULTS at the top of the file.

   Attribute	Default	What it is	Lower	Higher
   data-glass-surface-tint	#1e1711	Colour laid over what is seen through the glass; written on the pane as --glass-surface-tint. A dark colour makes smoked glass, which keeps light text readable over a bright photograph; a light one makes frosted white glass, for dark text. Options: any opaque CSS colour; an empty string in the settings block writes nothing and leaves the --glass-surface-tint of your stylesheet.
   data-glass-surface-rim	#ffe6bd	Colour of the line of light around the pane and of the glow it leaves on the glass; written as --glass-surface-rim. Options: any opaque CSS colour; an empty string leaves the --glass-surface-rim of your stylesheet.
   data-glass-surface-density	0.42	Share of the tint laid over the glass, from 0 to 1. It is what keeps the words on the pane readable.	At 0 the glass has no colour of its own, and words on it depend on what passes behind	Past 0.7 the pane reads as a filled box and little is seen through it
   data-glass-surface-blur	12	Blur of what is behind the face of the pane, in px. The bevel stays clear of it, so the bend is seen sharp.	At 0 the face is clear glass, and words that pass behind stay readable under the words of the pane	Past 24 what is behind is a wash of colour, and a thin bar has no face left: the blur fades towards the edge of the pane
   data-glass-surface-refraction	20	How far the edge bends what is behind, in px: at the very edge the backdrop is read that far towards the inside of the pane. Only where the bend is painted, Chromium.	At 0 nothing is bent and the pane is the blur and the rim, in every browser	Past the width of bevel the edge starts to mirror what it bends, and words that cross it read backwards; past 60 a thin bar shows the page twice
   data-glass-surface-bevel	16	Width of the edge that bends, in px, from the edge of the pane inwards. It never takes more than half of the smaller side.	Under 8 the bend is a hairline that reads as a border	Past 40 the bend reaches the words written on the pane, and a bar is all bevel and no face
   data-glass-surface-dispersion	0.08	How much the colours split inside the bend, from 0 to 1: red is bent a little more than green and blue a little less, as a thick edge does.	At 0 the bend has no fringe, and the filter is three times lighter	Past 0.3 every edge that crosses the bevel turns into a rainbow
   data-glass-surface-glint	0.9	Strength of the light on the rim, from 0 to 1, of the faint line all round as of the bright spot.	At 0 the pane has no rim at all	At 1 the spot is the full colour of rim
   data-glass-surface-reach	260	How far the light spreads along the rim from where it is, in px. From outside the pane it is also the distance at which the pointer starts to light the nearest edge.	Under 120 the light is a dot	Past 600 the whole rim is lit at once and nothing seems to move
   data-glass-surface-light	both	What moves the light. Options: both, the pointer where there is one and the scroll as soon as the page scrolls; pointer; scroll; none, the light stays where the stylesheet rests it, on the top edge.

2. Drive it from JavaScript

   When the page wants to place the light itself, on a pane that opens or to follow something other than the pointer, or to know whether the bend is painted in this browser.
   JavaScript Expand Copy

   const element = document.querySelector('[data-glass-surface]');
   element.addEventListener('glasssurface:ready', (e) => {
     console.log(e.detail);
   });

   const pane = GlassSurface.mount(element);   // the pane auto() mounted, or a new one
   pane.mode();          // 'refract' or 'blur'
   pane.light(40, 0);    // holds the light 40px along the top edge
   pane.light();         // gives it back to the pointer and the scroll

   element.addEventListener('glasssurface:ready', (e) => {
     console.log(e.detail.mode);
   });

   // When the pane leaves the page:
   pane.destroy();   // removes the filter and what the engine wrote on the pane

   Show all 16 lines

3. Fit it to your page

   • Structure: data-glass-surface on the box. That is all the engine needs. What the box holds is yours, in any markup and with your own classes: the words and links of a bar, the content of a card.
   • Make it yours: give the box its shape. Its size, its padding and its border-radius come from your class, and the bend follows the radius, a sharp corner included. The glass is seen when something passes behind it: put the pane over the page, position: sticky or fixed, or over a picture.
   • The colour of the glass is tint with density. The preview is smoked glass, a dark tint under cream words. For white frosted glass set a light tint, data-glass-surface-tint="#f4ece0", a density around 0.3, and write the words dark.
   • The light follows a mouse wherever it is on the page, and lights the rim from outside the pane too. When the page scrolls, and on a touch screen, it runs along the top edge, there and back, once for a little more than a screen of scroll. data-glass-surface-light chooses: both, pointer, scroll, none.
   • Where the bend is painted. A filter drawn in SVG inside backdrop-filter is painted by Chromium: Chrome, Edge, Opera, Brave, Android. Safari, on the Mac and on every iPhone browser, and Firefox are given the pane without the bend: the blur behind the whole box, the tint, the rim and its light. The engine writes which one it is on the pane, data-glass-surface-mode, refract or blur, and a rule of yours can read it.
   • Words on the pane sit over everything the glass draws. Keep them inside the bevel: the padding of the box is at least the bevel.
   • Several panes on a page each get their own filter. A pane is measured again when it changes size, never while the page scrolls.
   • One setting for every pane of the site, without opening the file: declare window.GlassSurfaceSettings = { blur: 16 } in a script placed before glass-surface.js. The three levels, least specific first, are DEFAULTS, then that object, then a data-glass-surface-* attribute on the pane itself (data-glass-surface-blur="16", data-glass-surface-light="none").
   • What the script writes: on the pane, data-glass-surface-ready, data-glass-surface-mode, and custom properties: the settings, the filter, --glass-surface-map, and the place of the light, --glass-surface-x and --glass-surface-y. At the end of the body, one hidden svg marked data-glass-surface-defs that holds one filter per pane. Nothing is added inside the pane.
   • From JavaScript: GlassSurface.mount(element) returns the instance, with mode(), light(x, y) to hold the light at a point of the pane, in px from its top left corner, and light() to give it back to the pointer and the scroll, refresh() after the radius changed without the size changing, and destroy(). The pane emits glasssurface:ready once mounted.
   • **prefers-reduced-motion**: the light does not move, it stays where the stylesheet rests it, on the top edge, and the motion of the preview stops. The blur and the bend stay: they move no faster than the page.
   • Without the script the pane is the blur, the tint, the rim and the light at rest: the stylesheet alone draws them. A browser with no backdrop-filter at all gets a denser tint.
   • A lens is a pane like the others, round and clear. The one of the preview is border-radius: 50% with data-glass-surface-blur="0", a density of 0.05 and a bevel wider than its radius, so the whole disc bends and nothing is frosted. Its refraction stays under a third of its radius. Where the bend is not painted, Safari and Firefox, it is a disc of faintly smoked glass with its rim and its light.
   • The motion of the preview is one attribute the stylesheet reads and the engine does not: data-glass-surface-drift on a pane makes it wander slowly around its place. The lens carries it, so the glass has something new to bend at every moment on a page that does not scroll; leave it out and the pane stays put. It stops under reduced motion.

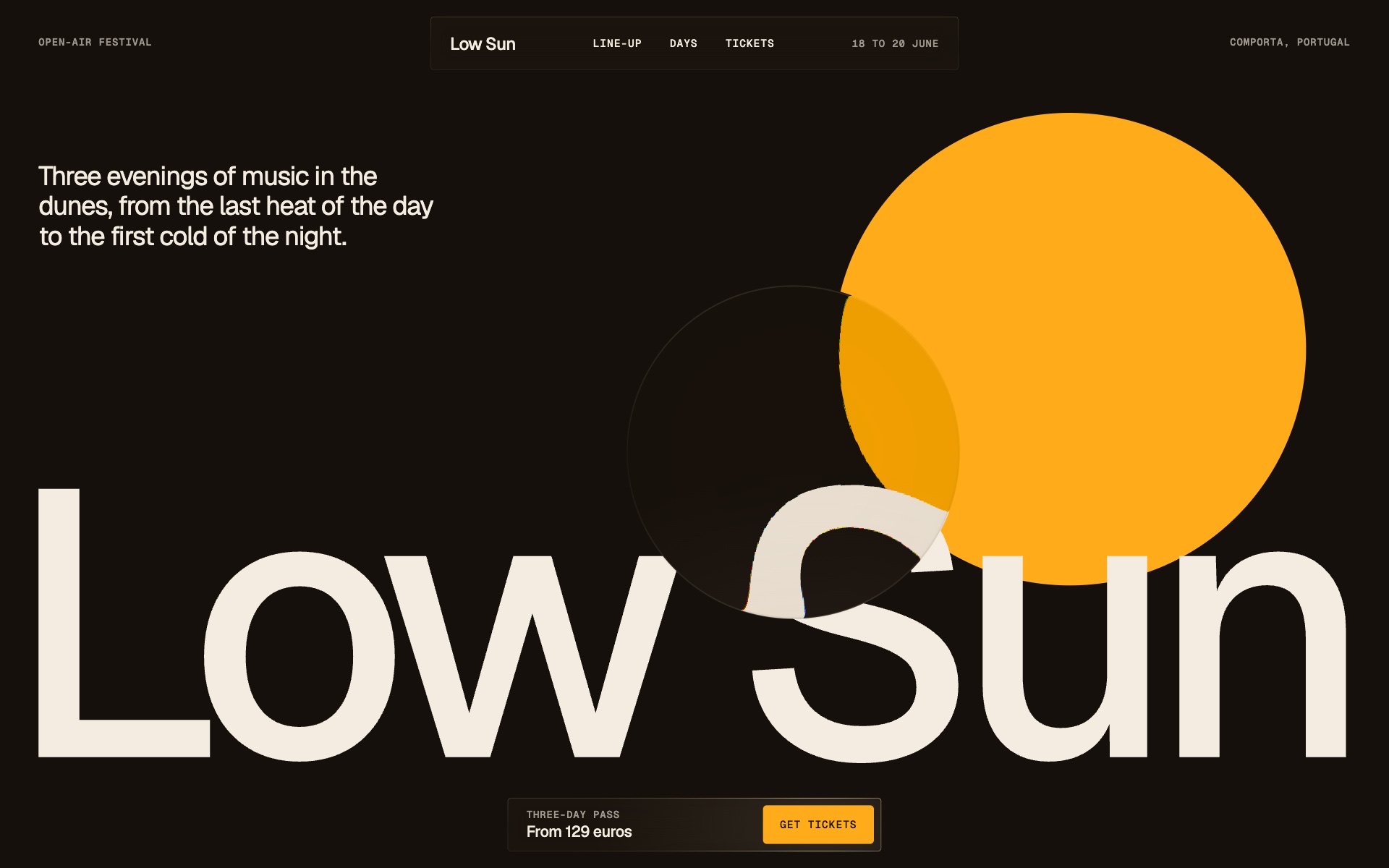

   • The words of the markup are the preview's, a festival that does not exist, and they ship as they are. Put your own in their place.
   • On Webflow, add the fonts first. Add Geist and Geist Mono to your site's fonts (Site settings, Fonts, Google Fonts) before pasting: the paste names them, and the Designer drops a font the site does not have.
   • On Webflow, the glass shows on the published page. The Designer runs no Embed, so on the canvas the three panes are plain boxes with no ground, where you edit their content like any other, and nothing drifts.

4. Avoid the pitfalls

   • **Do not give the pane a background, an opacity, a filter or a backdrop-filter of its own.** Its ground is the tint the stylesheet writes; a background on top of it hides the glass, and the three others replace or flatten what the pane sees behind itself.
   • **An ancestor with opacity under 1, a filter, a mask, a clip-path or a mix-blend-mode becomes all the pane can see.** The glass then blurs and bends only what is inside that ancestor, and nothing of the page behind it. Put the pane outside it.
   • The pane uses its two pseudo-elements. ::before is the rim and ::after the thickness. A ::before or an ::after of your own on the same box takes their place: put yours on a child.
   • The pane needs a position. The stylesheet gives it position: relative at zero specificity, so a sticky, fixed or absolute of your class wins. position: static written on it lets the rim leave the box.
   • Sticky needs a parent that does not clip. The bar, the lens and the dock of the preview are position: sticky, for the day the page under them is longer than one screen; a wrapper above them set to overflow: hidden or auto stops them from staying in the window.
   • **Keep bevel under a third of the smaller side** of a thin bar, or the bar is all edge and what passes behind it is never blurred.
   • A pane as large as the screen is heavy. The filter is drawn again for every frame of scroll over the whole pane. A bar, a card, a side panel are what it is for; for a full screen veil set refraction to 0.
   • A pane that changes size on every frame, an accordion in flight, has its chart drawn again on every frame. Animate a transform on it, or set refraction to 0 for the time of the move.
   • In a framework that owns the DOM, mount in an effect and call GlassSurface.destroy(el) in its cleanup: the engine takes its filter out of the page with it.
   • Do not judge the fallback in Chrome. To see what Safari and Firefox draw, set data-glass-surface-refraction="0": it is the same pane.

One click on Copy the AI prompt copies everything an assistant needs to build this effect: the complete code, the markup, the dependency, every setting and every pitfall.
