Arc marquee

1. Copy to Webflow

   Add Instrument Sans and Geist Mono to your site's fonts (Site settings, Fonts, Google Fonts) before pasting: Webflow removes any font your site has not installed.
   Copy to Webflow

2. Add custom CSS

   To keep things simple, the code ships inside the Webflow embed. You can also copy it here and add it yourself to the page or site custom code. How to choose

   The type of the arc is the type of the element: set its font, size, weight, tracking and colour on its class. Its height follows from the arc, so give it none. While the scroll bends the arc deeper, a dome reaches below its box and a bowl above it: leave some air there, or set flex to 0.

3. Add custom JS

   To keep things simple, the code ships inside the Webflow embed. You can also copy it here and add it yourself to the page or site custom code. How to choose

4. Use it on your own elements

   Custom attributes
   Select the element on the canvas and open the Settings panel. Under Custom attributes, add a pair: the name on the left, the value on the right.

   Custom attribute	What it does
   data-arc-marquee	Goes on the heading or the paragraph whose words run along the arc, and takes no value: leave the value field empty. That element becomes the box of the arc, as wide as it is and as tall as the arc needs, and its font, size, weight and colour are the arc's. The settings below go on the same element.
   data-arc-marquee-item	Marks one phrase inside that element, and takes no value. The engine draws the separator mark between two phrases. Without any item, the whole text of the element is one phrase. [ Optional ]
   data-arc-marquee-source	Written by the engine on the span that keeps the words as written, hidden from sight only so a screen reader reads them once. Never written by hand; destroy() gives the words back. [ Optional ]
   data-arc-marquee-svg	Written by the engine on the drawing it adds inside the element, hidden from screen readers. Never written by hand. [ Optional ]
   data-arc-marquee-state	Written by the engine on the element: running, paused while it is off screen, still under reduced motion or when there is nothing to draw. Never written by hand, and a page can style on it. [ Optional ]

   Settings
   Every setting is a custom attribute too, added the same way and on the same element. An attribute always wins over the defaults written in the code.

   Attribute	Default	What it is
   data-arc-marquee-accent	currentColor	The colour of the mark between two phrases. Options: any CSS colour; currentColor takes the colour of the text.
   data-arc-marquee-mode	auto	What moves the words. Options: auto (they run on their own and the scroll speeds them up), scroll (they move with the page only, and stand still when it does).
   data-arc-marquee-direction	left	Which way the words run along the arc. Options: left, right.
   data-arc-marquee-speed	70	How fast the words run on their own, in pixels a second, in auto mode.
   data-arc-marquee-boost	1	How much of the scroll is handed to the words, as a factor. In scroll mode, the pixels of travel for each pixel scrolled.
   data-arc-marquee-max-speed	2000	The ceiling, in pixels a second; also the speed at which the arc reaches its full extra bend.
   data-arc-marquee-ease	0.1	How quickly the words and the bend take up the scroll, 0 to 1.
   data-arc-marquee-bend	0.12	The rise of the arc at rest, as a share of the width of the element: how much higher its middle stands than its two ends. Negative turns the dome into a bowl.
   data-arc-marquee-flex	1.2	How much deeper the arc bends at top speed, in times its resting bend.
   data-arc-marquee-reverse	true	Whether scrolling up sends the words back the other way, in auto mode. Options: false (the page only ever pushes them forward), true.
   data-arc-marquee-separator	✦	The mark drawn between two phrases, any text. Options: one character like ✦, ◆ or /, a word, or empty for no mark.
   data-arc-marquee-gap	0.45	The space on either side of the mark, in ems of the text.

Two files and their pictures (3), no build step. It runs in the browser only. Load it with a script tag in plain HTML, in a client-side script in Astro, never in the frontmatter. In React, call ArcMarquee.mount(ref.current) in useEffect and destroy() in its cleanup.

1. Tune it, either way

   Per element with an attribute, or once for the whole site by editing DEFAULTS at the top of the file.

   Attribute	Default	What it is	Lower	Higher
   data-arc-marquee-accent	currentColor	The colour of the mark between two phrases. Options: any CSS colour; currentColor takes the colour of the text.
   data-arc-marquee-mode	auto	What moves the words. Options: auto (they run on their own and the scroll speeds them up), scroll (they move with the page only, and stand still when it does).
   data-arc-marquee-direction	left	Which way the words run along the arc. Options: left, right.
   data-arc-marquee-speed	70	How fast the words run on their own, in pixels a second, in auto mode.	Nearly still between two scrolls	Runs on briskly with no help
   data-arc-marquee-boost	1	How much of the scroll is handed to the words, as a factor. In scroll mode, the pixels of travel for each pixel scrolled.	The scroll barely shows in the words	A flick of the wheel throws them along the arc
   data-arc-marquee-max-speed	2000	The ceiling, in pixels a second; also the speed at which the arc reaches its full extra bend.	A calm line that refuses to race, and bends at the slightest pull	A line that can turn into a blur, and needs a hard scroll to bend
   data-arc-marquee-ease	0.1	How quickly the words and the bend take up the scroll, 0 to 1.	Long and heavy, keeps going after the scroll stops	Glued to the scroll, close to nervous
   data-arc-marquee-bend	0.12	The rise of the arc at rest, as a share of the width of the element: how much higher its middle stands than its two ends. Negative turns the dome into a bowl.	Flatter, 0 is a straight line; -0.14 a bowl	A deeper dome, up to 0.4
   data-arc-marquee-flex	1.2	How much deeper the arc bends at top speed, in times its resting bend.	0 keeps the arc as it is; negative values flatten it while the scroll pulls	The arc curls hard as soon as the page moves
   data-arc-marquee-reverse	true	Whether scrolling up sends the words back the other way, in auto mode. Options: false (the page only ever pushes them forward), true.
   data-arc-marquee-separator	✦	The mark drawn between two phrases, any text. Options: one character like ✦, ◆ or /, a word, or empty for no mark.
   data-arc-marquee-gap	0.45	The space on either side of the mark, in ems of the text.	Phrases and marks close together	A wide pause between two phrases

2. Drive it from JavaScript

   When the arc has to stop and start on its own, when its words change after load, or when the page reacts to its speed.
   JavaScript Expand Copy

   const element = document.querySelector('[data-arc-marquee]');
   element.addEventListener('arcmarquee:ready', (e) => {
     console.log(e.detail);
   });

   const arc = ArcMarquee.mount(element);   // the element auto() mounted, or a new one
   arc.pause();      // out of the frame loop, and arc.play() back into it
   arc.speed();      // px/s along the arc now; arc.bend() the bend of the moment
   arc.measure();    // read the words and the width again, after a change of your own

   // Text added after the page loaded: mount everything marked inside it.
   ArcMarquee.auto(document.body);

   // When the arc leaves the page:
   ArcMarquee.destroy(element);   // removes the drawing, gives the words back

   Show all 15 lines

3. Fit it to your page

   • Mark the text, not the section: data-arc-marquee goes on the heading or the paragraph itself. Its font, size, weight, tracking and colour are the arc's, so a class on that element styles the arc. A page can hold as many as it likes, each with its own settings.
   • Write the words once. Mark each phrase data-arc-marquee-item to get a mark between them, or leave the text as it is for a single phrase. The engine repeats the phrases as many times as the arc needs, and counts again when the width, the font or the words change.
   • The arc spans the element's width. Give the element the full width of the page for an arc that leaves both edges of the screen, which is what makes it read as the edge of a much larger circle. Its height follows: the rise of the arc plus room for the letters, with no height to set.
   • Dome or bowl: a positive bend raises the middle (a dome, with the letters on its outer side), a negative one lowers it (a bowl, the letters standing inside it).
   • Auto or scroll: auto runs on its own and the scroll adds to it, up to maxSpeed; scroll moves only while the page moves, by boost pixels for each pixel scrolled, and goes back when the reader scrolls back. In scroll mode the words sit in their resting place when the element is in the middle of the window.
   • Settings go on the element, as more attributes: data-arc-marquee-mode="scroll", data-arc-marquee-bend="-0.14". Three levels, least specific first: DEFAULTS, then window.ArcMarqueeSettings = { speed: 90 } declared before the engine, then the element's own attributes.
   • From JavaScript: ArcMarquee.mount(el, overrides) returns { element, settings, speed(), bend(), period(), measure(), play(), pause(), destroy() }, and hands back the existing handle for an element already mounted. ArcMarquee.destroy(el), ArcMarquee.auto(root) and ArcMarquee.defaults complete it. Events, both bubbling, with element in the detail: arcmarquee:ready (period, mode, still) and arcmarquee:measure (period, rounds, width, reason).
   • Screen readers read the words once. The words as written stay in the element, hidden from sight only, and the drawing is aria-hidden. A heading stays a heading with its own text.
   • It costs nothing off screen. An IntersectionObserver takes an arc out of the frame loop the moment it leaves the window, and the loop stops when the last one leaves.
   • **Under prefers-reduced-motion: reduce** the arc is drawn at rest and nothing moves, neither with time nor with the scroll. The media query is listened to, so turning the setting on or off answers without a reload.
   • Touch: a finger scrolling the page drives the arc exactly like a wheel. Nothing answers the pointer itself, and the drawing lets clicks through.
   • The words of the markup are the preview's, and they ship as they are: pasted, the page reads the way the preview did. Put the user's own words in their place whenever they want, in the page's language.
   • On Webflow, add the fonts first. Add Instrument Sans and Geist Mono to your site's fonts (Site settings, Fonts, Google Fonts) before pasting: the paste names them, and the Designer drops a font the site does not have.

4. Avoid the pitfalls

   • The stylesheet matters. Without arc-marquee.css the source words are not hidden, so they show twice, and the drawing does not take the width of its element. The engine says so in the console after a second and a half when it measures nothing.
   • The arc runs past its box while the scroll bends it. The box is laid out for the arc at rest; a dome that bends deeper reaches below its box, a bowl above it, over whatever sits there, and comes back when the scroll stops. The sides are clipped (overflow-x: clip), the top and the bottom are not. Leave some air above a bowl and below a dome, or set flex to 0.

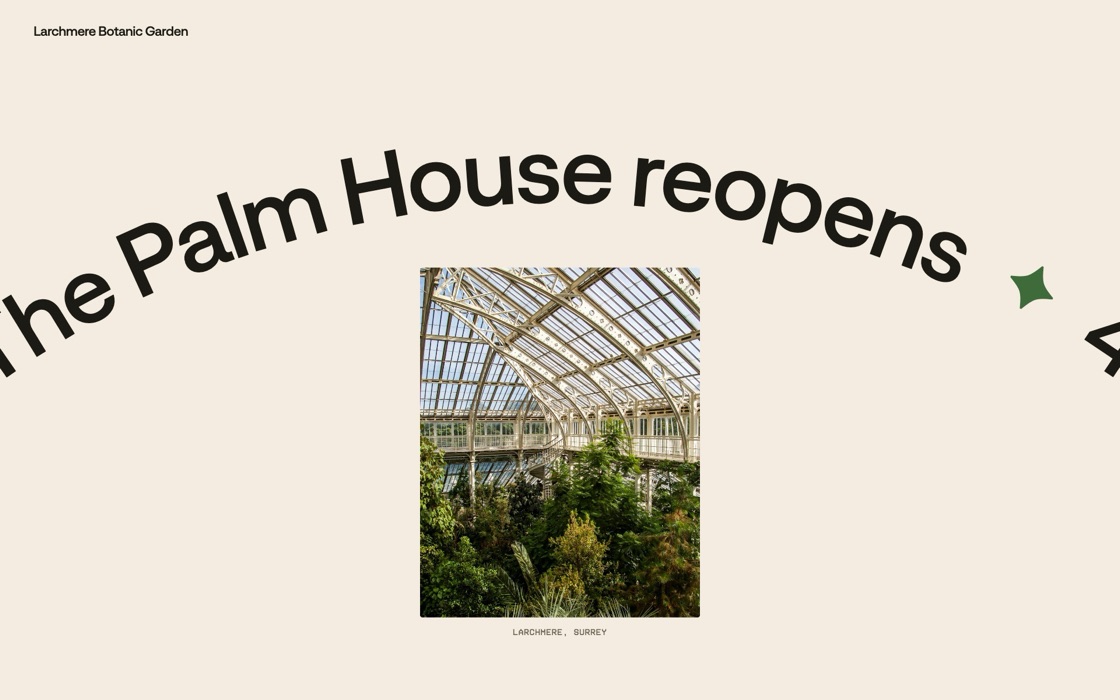

   • **Anything placed to meet the arc depends on bend.** The preview pulls a photograph up under the dome by its resting rise (margin-top: calc(0.2em - 16vw) for a bend of 0.16), and the bowl up under a window (margin-top: calc(-14vw + 0.25em) for a bend of -0.14). Change the bend and change those margins with it.
   • Plain text only on the arc. The phrases are read as text: links, images or icons inside the element stay in the hidden source for screen readers and are not drawn. A link belongs next to the arc, not inside it.
   • One line. Line breaks and runs of spaces in the words are read as a single space.
   • The type is the element's. Set the size in your class, in any unit; clamp() works and the arc follows when the window is resized.
   • **An element with display: inline** gets display: block from the component once mounted, so it takes the width of its parent.
   • A pointer state never survives the paste (AB-41): a colour change on hover lives in the CSS of the component or in your own class, never in a Webflow class variant.

One click on Copy the AI prompt copies everything an assistant needs to build this effect: the complete code, the markup, the dependency, every setting and every pitfall.
